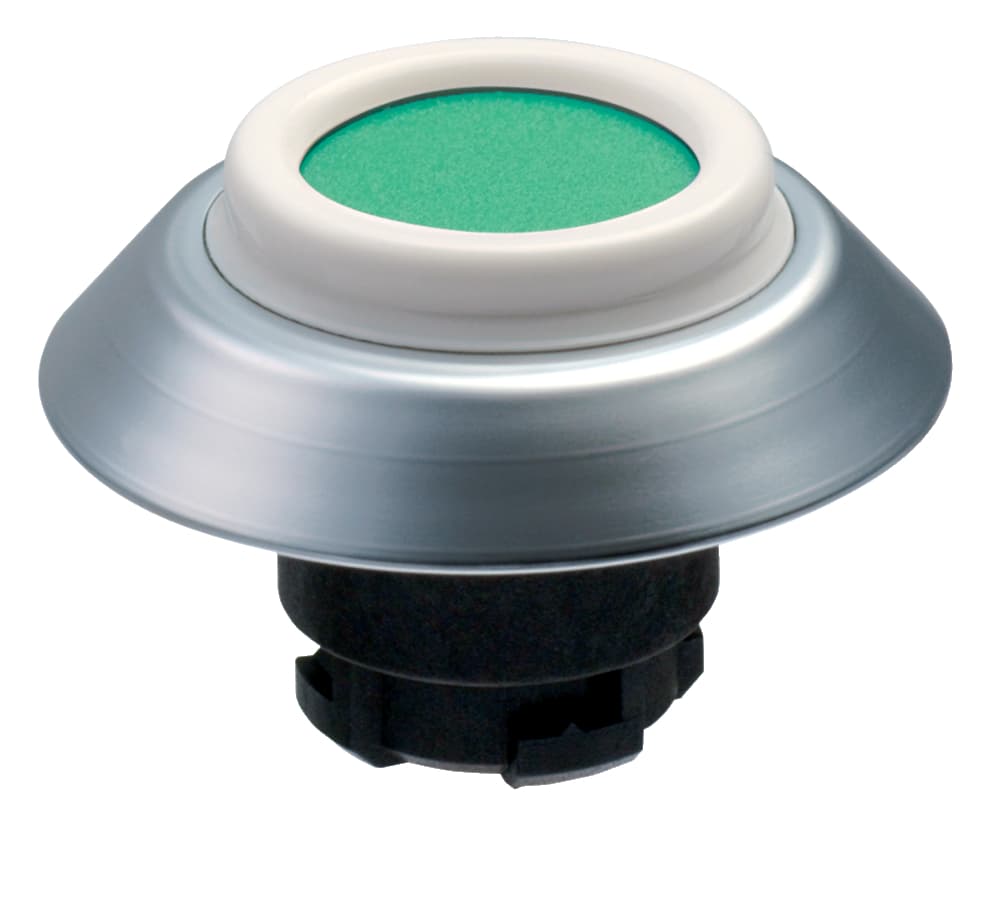

NDTBL/GB Schmersal Pushbuttons

Name: NDTBL/GB
Brand: Schmersal
Price: 34 USD
Availability: BackOrder

Part#:NDTBL/GB

Alt. Part#:103009271

Manufacturer:Schmersal

Category:Pushbuttons

Product Lifecycle:Active

Product description

Command and signalling devices; "N" program

Product Details

Colour of the operating element
Yellow
Material of the operators
ABS
Diameter hole, with tolerance indication
22.3 + 0.4 mm
Ambient temperature, maximum
+80 °C
Versions
Embeddable button - Front plate mounting
Colour of the bellows
Blue
Thickness of the front panel, maximum
6 mm
Gross weight
25 g
Standards
EN 60947-5-1, IEC/EN 60947-1
Diameter hole
22.3 mm
Design
Round
Mounting flange
Yes
Height
11 mm
Sealing type
Membrane, Lip gaskets
Probing possible
Yes
Tightening torque of the screw
0.6 Nm
Degree of protection
IP67, IP69K
Colour of the front ring
Silver
Fully insulated
Yes
Thickness, of the front panel, minimum
1.5 mm

Ambient temperature, minimum

-25 °C

Unlocking

without

Mounting

Mounting flange EFM

Spacing

50 x 50 mm

Material of the front ring

ABS, chrome-plated

Actuating stroke

5 mm

diameters for the actuating heads

44.5 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDTBL/GB on Applied Automation is $34.00. Order now.
