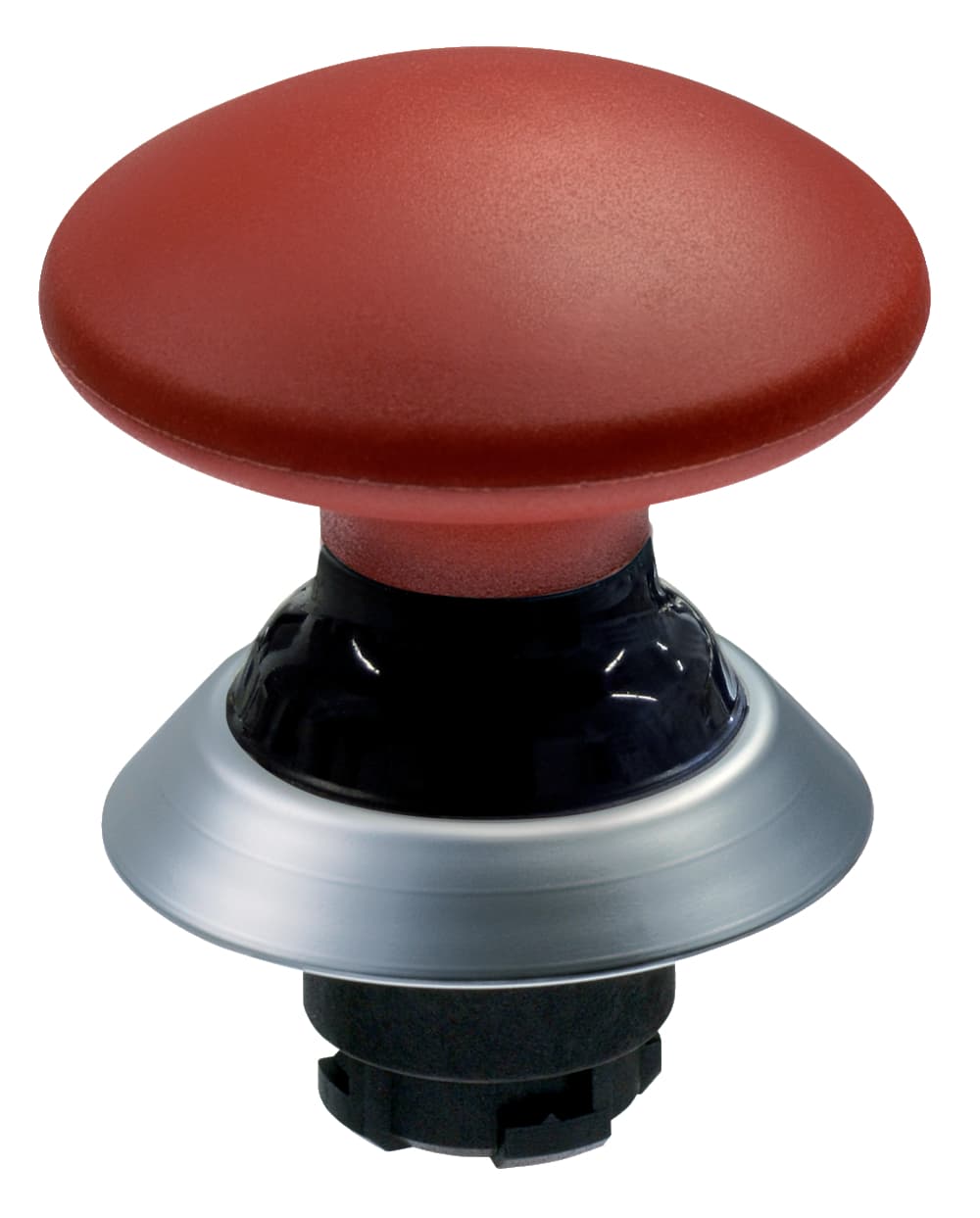

NDP50RT Schmersal Electronic Components

Product Details

• Material of the bellows
  Silicone
• Actuating stroke
  5 mm
• Thickness of the front panel, maximum
  6 mm
• Sealing type
  Membrane, Lip gaskets
• Gross weight
  50 g
• Diameter hole
  22.3 mm
• Colour of the operating element
  Red
• Mounting flange
  Yes
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Material of the front ring
  ABS, chrome-plated
• Fully insulated
  Yes
• Thickness, of the front panel, minimum
  1.5 mm
• Material of the operators
  ABS
• Colour of the bellows
  White
• Height
  45 mm
• Ambient temperature, maximum
  +80 °C
• Versions
  round, Push button
• diameters for the actuating heads
  50 mm
• Degree of protection
  IP67, IP69K
• Colour of the front ring
  Silver
Mounting
Mounting flange EFM
Spacing
50 x 50 mm
Standards
EN 60947-5-1, IEC/EN 60947-1
Design
Round
Tightening torque of the screw
0.6 Nm
Ambient temperature, minimum
-25 °C
