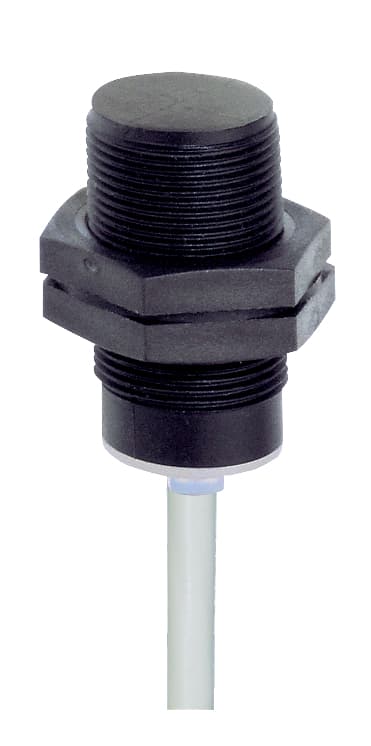

EX-BNS 180-12Z-2187-2-3G/D 10,0M Schmersal Electronic Components

Product Details

• Number of safety contacts
  2
• Terminal Connector
  Cable
• Length of sensor
  36 mm
• Storage and transport temperature, maximum
  +70 °C
• Enclosure material
  Glass-fibre, reinforced thermoplastic
• Short-circuit recognition
  Yes
• ISO thread of the sensor
  M18
• Wire cross-section
  23 AWG
• Switching current, maximum
  0.25 A
• Direction of motion
  Head-on to the active surface
• Actuating element
  Magnet
• Resistance to vibrations to EN 60068-2-6
  10 … 55 Hz, amplitude 1 mm
• Switching voltage, maximum
  120 VAC
• Housing construction form
  Cylinder, thread
• Impact energy, maximum
  2 J
• Restistance to shock
  30 g / 11 ms
• Storage and transport temperature, minimum
  -25 °C
• Standards
  IEC 60947-5-3, BG-GS-ET-14
• Active area
  front side
• Ensured switch distance ON Sao
  18 mm, 8 mm
Voltage type
AC (alternating current), DC (direct current)
Switching capacity, maximum
5 W
Number of openers
2
Installation conditions (mechanical)
quasi-flush
Material of the Cable mantle
PVC
Ambient temperature, maximum
+70 °C
Number of shutters
1
Gross weight
401 g
Ensured switch distance OFF Sar
22 mm, 32 mm
Ambient temperature, minimum
-25 °C
Short circuit detection
Yes
Actuator switch distance
Actuating magnet BP 15 SS, Sao: 18 mm, Actuating magnet BP 10, Sao: 18 mm, Actuating magnet BP 8, Sao: 8 mm
Length of cable
10 m
Degree of protection
IP67
Switching frequency, maximum
5 Hz
