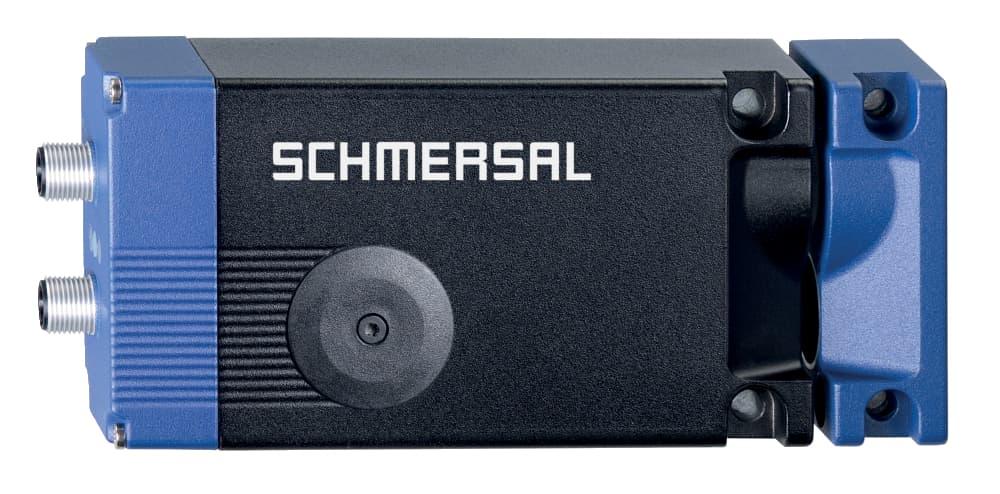

AZM400Z-ST2-I2-2P2P-BOW-E Schmersal Safety Accessories

Product Details

• Guard locking monitored
  Yes
• general information
  Individual coding, multiple teaching
• Enclosure material
  Light alloy die-casting
• Short-circuit recognition
  Yes
• Note (Mechanical lifetime)
  Which have a lateral force Ftrans = 100 N: 100.000 operations
• Interlocking principle
  bistable
• Safety functions
  Yes
• Tightening torque of the fixing screws Bowden cable
  1.2 Nm
• Terminal Connector
  2 connector M12, 8 and 5 pin
• Gross weight
  859.2 g
• Lateral force at bolt return, maximal (against locked door)
  300 N
• Tightening torque of the screw
  8 Nm
• Protection rating
  III
• Rated operating current (safety outputs)
  250 mA
• Note
  The diagnostic output are not safety relevant outputs!
• Time to readiness, maximum
  1,500 ms
• Electronic manual release
  Yes
• Note (Lateral force at bolt return)
  Does not apply to emergency exit, Bowden cable and manual release
• Height of sensor
  166.7 mm
• Restistance to shock
  30 g / 11 ms
Rated operating voltage
24 VDC
Allowable discrepancy time (input), maximum
10 s
Classification ZVEI CB24I, Source
C2
Current, Utilisation category DC12
0.05 A
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Clamping force in accordance with ISO14119 Fzh
10,000 N
Storage and transport temperature, maximum
+85 °C
Rated impulse withstand voltage Uimp
0.8 kV
Open / close cycle (Motor), minimum
3
Voltage drop Ud, maximum
2 V
Versions
short-circuit proof, p-type
Reaction time, maximum
100 ms
Ambient temperature, maximum
+55 °C
Rated insulation voltage Ui
32 VDC
Switching frequency, approx.
0.3 Hz
Current leakage Ir
1.5 mA
Coding level according to ISO 14119
High
Storage and transport temperature, minimum
-40 °C
Current consumption at 24V, minimum
10 mA
Minimal average cycle time (with continuous operation)
20 s
Active principle
Magnetic field, RFID
Number of diagnostic signals
2
Width of sensor
77.8 mm
Overvoltage category
III
Switching thresholds of the control inputs
−3 V … 5 V (Low), 15 V … 30 V (High)
Securing holes for Bowden cable assembly
Yes
Number of safety contacts
2
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Current consumption, maximum
600 mA
Operating current
50 mA
Voltage, Utilisation category DC12
24 VDC
Short circuit detection
Yes
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Degree of pollution to VDE 0100
3
Current, Utilisation category DC13
0.05 A
Integral System Diagnostics, status
Yes
Clamping force, maximum Fmax
13,000 N
Length of sensor
46.7 mm
Current consumption at 24V, maximum
15 mA
Required rated short-circuit current to EN 60947-5-1
100 A
Voltage, Utilisation category DC13
24 VDC
Mechanical life, minimum
1,000,000 Operations
Minimum distance devices
30 mm
Ambient temperature, minimum
-20 °C
Operating Current
100 mA
No-load supply current I0
100 mA
Classification ZVEI CB24I, Sink
C1, C2
