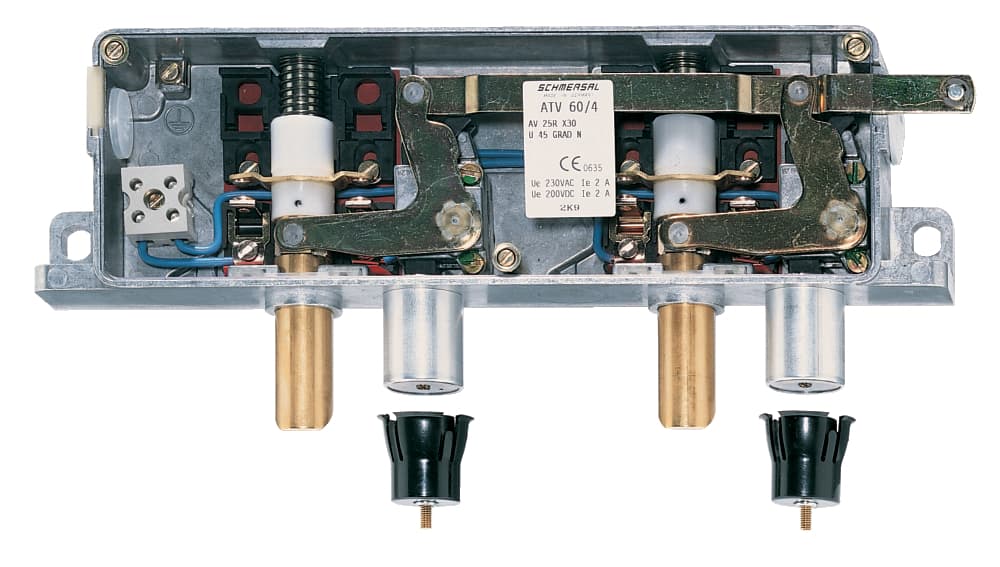

AV25RKX11.5U-GB215 Schmersal Electronic Components

Product Details

• Gross weight
  1,276 g
• Material of the contacts, electrical
  Silver
• Permanent magnet
  Ceramic oxide magnets with high coercive field strength
• Latching bolt bevelling, bottom
  45 °
• Thermal test current
  10 A
• Actuating element
  Pull strap
• Material of the latching bolt
  Brass
• Depth
  36 mm
• Switching element
  NC contact, NO contact
• Manual release
  Yes
• Mounting
  rear-side mounting holes
• Ambient temperature, maximum
  +70 °C
• Switching principle
  Slow action
• Number of door leafs
  2
• Orientation / Alignment
  right-hand model
• Standards
  EN 81-20, EN 81-50
• Cable entry
  without cable gland
• Width
  285 mm
• Diameter of the latching bolt
  18 mm
• Enclosure material
  Light alloy die-casting
With fail-safe locking system (Y/N)
Yes
Degree of protection
IP20
Note (X-dimension of the latching bolt)
The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of t
Safety functions
Yes
Ambient temperature, minimum
-15 °C
Rated impulse withstand voltage Uimp
6 kV
Utilisation category AC-15
2 A
Utilisation category DC-13
200 VDC
Number of safety contacts
2
Height
80 mm
X-dimension of the latching bolt
11.5 mm
Rated insulation voltage Ui
400 VAC
