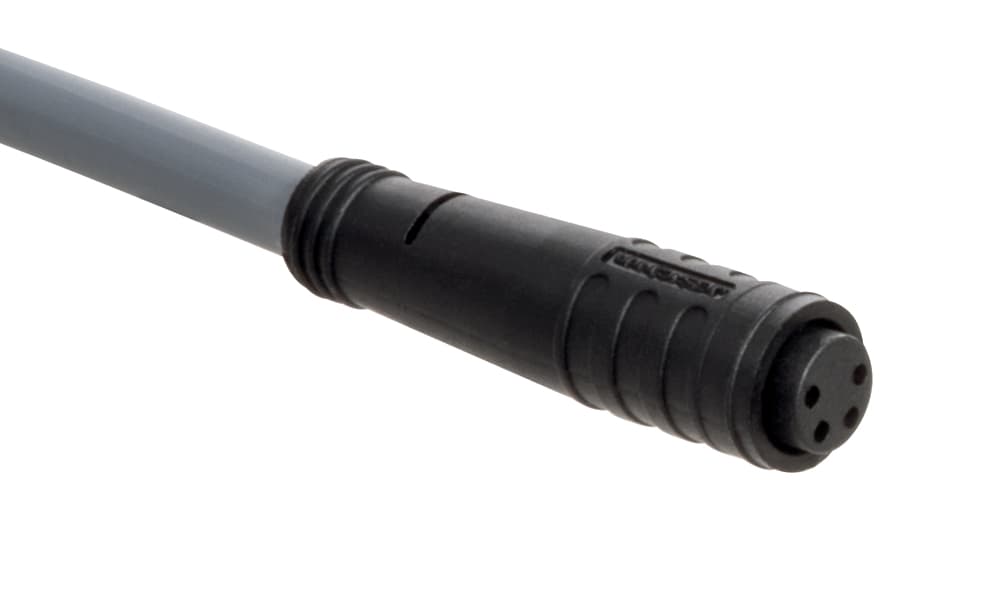

A-K4P-M8-R-G-5M-GY-1-X-X-4 Schmersal Cable Assemblies

Product Details

• Number of cable wires
  4
• Colour of the Cable mantle
  Grey
• Length of cable
  5 m
• Number of poles
  4
• Material of the Cable mantle
  PVC
• Connector typ
  Female connector, M8
• Wire cross-section
  0.25 mm2
• Design
  straight
• Connector latching
  Latching interlocking
• Cable diameter
  4.7 mm
• Material of the gland
  Plastic, TPU
• Bending radius (fixed)
  5 x Ø-cable
• Material of the handle
  Plastic, TPU
• Bending radius (repeated)
  10 x Ø-cable
• Colour of the handle
  Grey
• Ambient temperature, minimum (Connector)
  -30 °C
• Ambient temperature, maximum (Connector)
  +90 °C
• Degree of protection
  IP65, IP67, IP69
• Temperature (fixed), maximum
  +80 °C
• Temperature (repeated), minimum
  +0 °C
Thermal test current
4 A
Standards
IEC 61076-2-104
Rated operating voltage
60 V
Temperature (fixed), minimum
-25 °C
Operating current
4,000 mA
Temperature (repeated), maximum
+80 °C
Gross weight
167.4 g
