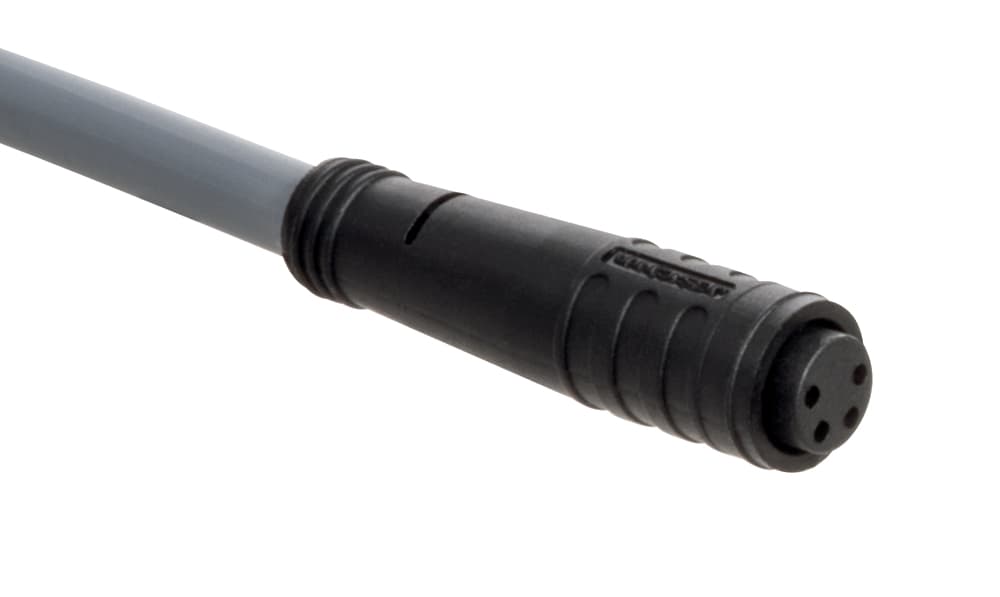

A-K4P-M8-R-G-2M-GY-1-X-X-4 Schmersal Cable Assemblies

Product Details

• Number of poles
  4
• Connector typ
  Female connector, M8
• Operating current
  4,000 mA
• Bending radius (repeated)
  10 x Ø-cable
• Material of the Cable mantle
  PVC
• Thermal test current
  4 A
• Temperature (repeated), maximum
  +80 °C
• Number of cable wires
  4
• Bending radius (fixed)
  5 x Ø-cable
• Colour of the Cable mantle
  Grey
• Connector latching
  Latching interlocking
• Standards
  IEC 61076-2-104
• Design
  straight
• Colour of the handle
  Grey
• Temperature (repeated), minimum
  +0 °C
• Gross weight
  71.8 g
• Wire cross-section
  0.25 mm2
• Degree of protection
  IP65, IP67, IP69
• Ambient temperature, minimum (Connector)
  -30 °C
• Length of cable
  2 m
Material of the gland
Plastic, TPU
Ambient temperature, maximum (Connector)
+90 °C
Cable diameter
4.7 mm
Material of the handle
Plastic, TPU
Rated operating voltage
60 V
Temperature (fixed), minimum
-25 °C
Temperature (fixed), maximum
+80 °C
