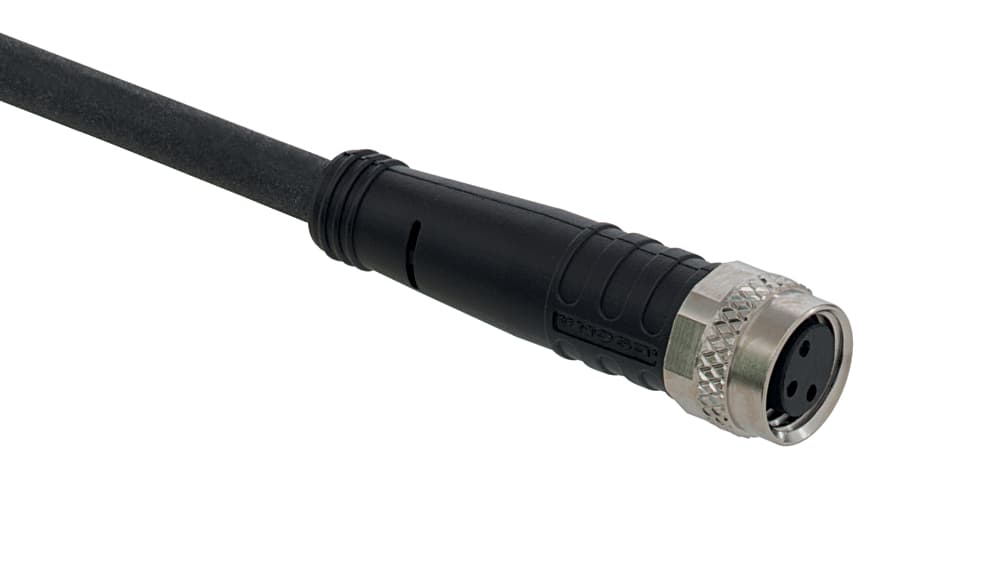

A-K3P-M8-S-G-2M-BK-2-X-X-4-69 Schmersal Cable Assemblies

Product Details

• Standards
  IEC 61076-2-104
• Material of the Cable mantle
  PUR
• Colour of the handle
  Black
• Temperature (repeated), maximum
  +90 °C
• Halogen free
  Yes (1)
• Material of the gland
  Metal, CuZn, nickel-plated
• Temperature (drag chain), minimum
  -25 °C
• Length of cable
  2 m
• Cable diameter
  4 mm
• Connector latching
  Screw locking
• Temperature (fixed), maximum
  +90 °C
• Cable drag chain suitable
  Yes (1)
• Connector coding
  A
• Thermal test current
  4 A
• Tightening torque, maximum
  0.6 Nm
• Connector typ
  Female connector, M8
• Degree of protection
  IP65, IP67, IP69
• Temperature (repeated), minimum
  -30 °C
• Wire cross-section
  0.25 mm2
• Colour of the Cable mantle
  Black
Ambient temperature, maximum (Connector)
+90 °C
Temperature (drag chain), maximum
+60 °C
Number of cable wires
3
Bending radius (fixed)
5 x Ø-cable
Design
straight
Ambient temperature, minimum (Connector)
-30 °C
Operating current
4,000 mA
Gross weight
48.8 g
Bending radius (repeated)
10 x Ø-cable
Material of the handle
Plastic, TPU
Temperature (fixed), minimum
-50 °C
Rated operating voltage
60 V
