W7077C6331Z ROSS Controls Electronic Components
Part#:W7077C6331Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

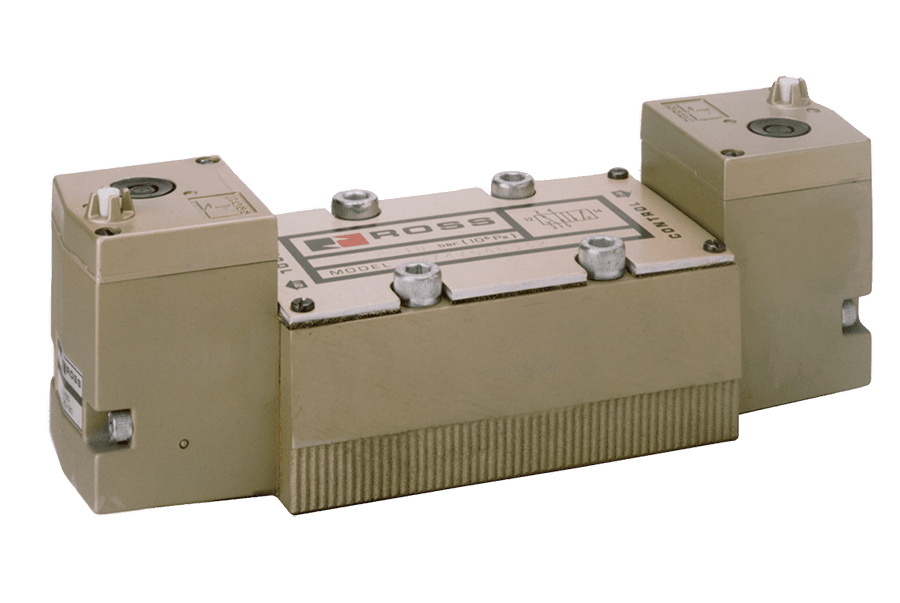

ANSI Size 10, W70 Series, 5/3 Closed Center Solenoid Valve, Spool & Sleeve, 110/120 VAC
Product Details
- Mounting Base Mount
- Media Temperature 40 to 175 F (4 to 80 C)
- Default Position Normally Closed
- Height 3.97 in (101 mm)
- Construction Spool and Sleeve
- Fluid Media Filtered air
- Seal Material Buna-N
- Height (mm) 101
- Center Position Closed
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Return Detented
- Function 5/3-Way, Double Solenoid
- Actuation Electrical
- Manual Override Non-locking
- Operating Pressure Vacuum to 150 psig (10 bar)
- Valve Body Material Cast Aluminum
- Pilot Type Internal/External
- Length (mm) 99
- Valve Type Directional Control
- Valve Standard ANSI
- Media Temperature (Celcius) 4 to 80
- Duty Rating Continuous Duty
- Poppet/Spool Material Stainless Steel
- Size 10
- Avg Cv 10.0
- Width 12.06 in (306 mm)
- Weight (kg) 3.8
- Usage Models W70
- Pilot Supply Minimum Equal to or greater than inlet pressure
- Length 3.9 in (99 mm)
- Connection Hardwired
- Ambient Temperature (Celcius) 4 to 50
- Voltage 110/120 VAC
- Weight 8.5 lb (3.8 kg)
- Application General
- Operating Pressure (bar) Vacuum to 10
- Power Consumption 140 VA inrush, 30 VA holding on 50 or 60 Hz
- Width (mm) 306
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
