D2771B2001W ROSS Controls Electronic Components
Part#:D2771B2001W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

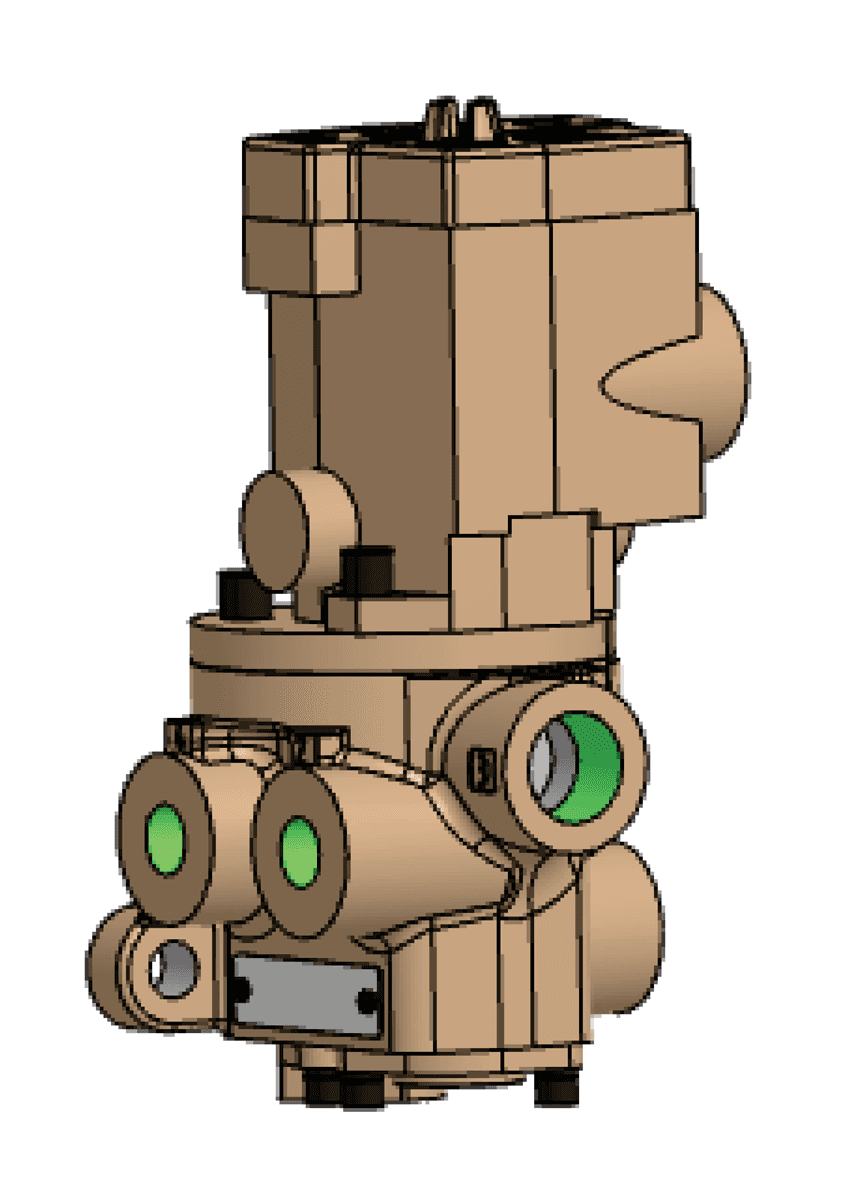

27 Series, 2/2 Single Solenoid Pilot Valve, Normally Closed, Spring Return, Ports (In-Out) G1/4" 24 VDC
Product Details
- Return Spring
- Power Consumption 20 watts
- Seal Material Buna-N
- Weight 2.5 lb (1.2 kg)
- Outlet Pipe Size 1/4"
- Duty Rating Continuous Duty
- Poppet/Spool Material Acetal, Stainless Steel
- Media Temperature (Celsius) 4 to 80
- Width 3.15 in (80 mm)
- Mounting Inline
- Manual Override Non-locking
- Pilot Type Internal/External
- Length 3.47 in (88 mm)
- Width (mm) 80
- Size 3/8"
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Actuation Electrical
- Valve Type Directional Control
- Voltage 24 VDC
- Pilot Supply Minimum equal to or greater than inlet pressure
- Function 2/2 Single Solenoid
- Height 6.88 in (175 mm)
- Application General
- Media Temperature 40 to 175 F (4 to 80 C)
- Height (mm) 175
- Series 27
- Fluid Media Filtered Air
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Inlet Pipe Size 1/4"
- Ambient Temperature (Celsius) 4 to 50
- Length (mm) 88
- Default Position Normally Closed
- Operating Pressure (bar) 1 to 10
- Thread Type G
- Construction Poppet
- Connection Hardwired
- Avg Cv 2.3
- Valve Body Material Cast Aluminum
- Weight (kg) 1.2
