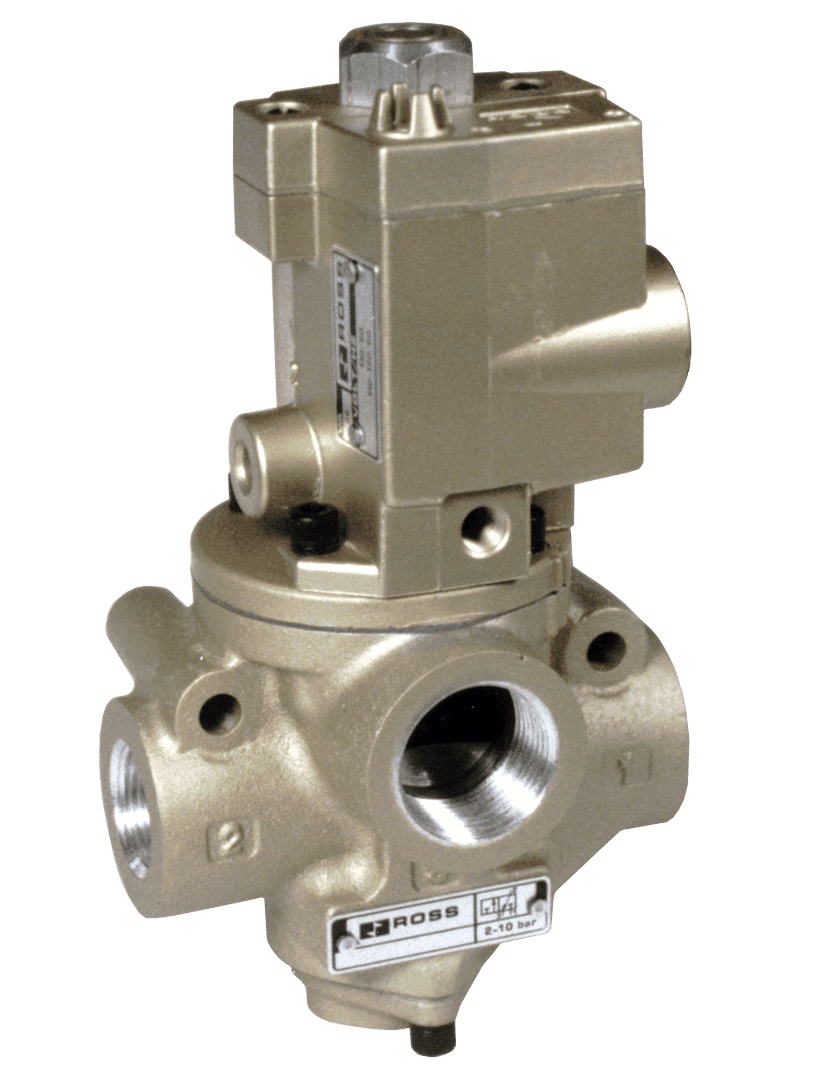

D2172B4002Z ROSS Controls Electronic Components

Product Details

• Connection
  Hardwired
• Application
  Low Temperature
• Size
  3/4
• Height (mm)
  198
• Return
  Spring
• Default Position
  Normally Open
• Outlet Pipe Size
  1/2"
• Weight
  3.3 lb (1.5 kg)
• Manual Override
  Non-locking
• Actuation
  Electrical
• Inlet Pipe Size
  1/2"
• Width
  3.15 in (18 mm)
• Series
  21
• Operating Pressure
  30 to 150 psig (2 to 10 bar)
• Thread Type
  G
• Function
  2/2 Single Solenoid
• Valve Type
  Directional Control
• Poppet/Spool Material
  Aluminum and Stainless Steel
• Voltage
  110/120 VAC
• Length
  4.45 in (113 mm)
Power Consumption
87 VA inrush, 30 VA holding on 50/60 Hz
Seal Material
Fluorocarbon
Ambient Temperature (Celsius)
-40 to 50
Width (mm)
18
Construction
Poppet
Valve Body Material
Cast Aluminum
Media Temperature (Celsius)
-40 to 80
Length (mm)
113
Duty Rating
Continuous Duty
Pilot Supply Minimum
Equal to or greater than inlet pressure
Media Temperature
-40 to 175 F (-40 to 80 C)
Weight (kg)
1.5
Fluid Media
Filtered air
Pilot Type
Internal/External
Avg Cv
6.5
Mounting
Inline
Operating Pressure (bar)
2 to 10
Ambient Temperature
-40 to 120 F (-40 to 50 C)
Height
7.8 in (198 mm)
