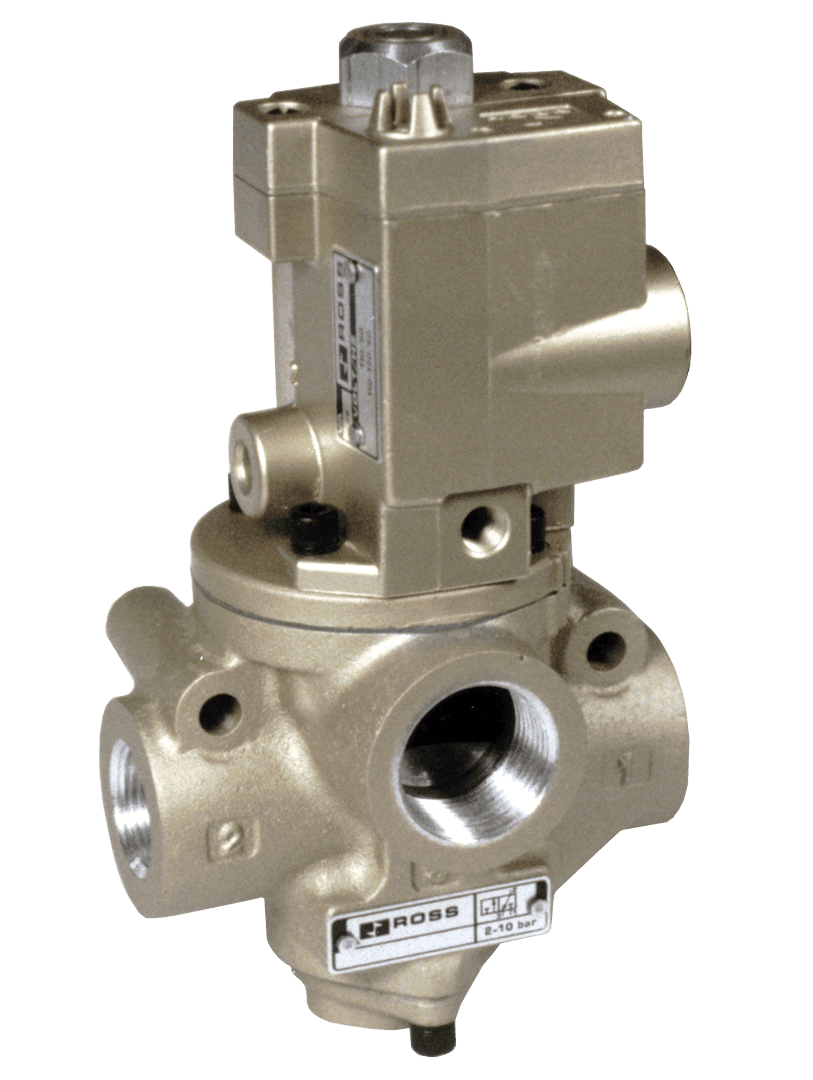

D2172B3002W ROSS Controls Electronic Components

Product Details

• Manual Override
  Non-locking
• Pilot Supply Minimum
  Equal to or greater than inlet pressure
• Avg Cv
  3.3
• Width (mm)
  77
• Valve Type
  Directional Control
• Power Consumption
  87 VA inrush, 30 VA holding on 50/60 Hz
• Actuation
  Electrical
• Media Temperature
  -40 to 175 F (-40 to 80 C)
• Height
  7.08 in (180 mm)
• Mounting
  Inline
• Length (mm)
  90
• Thread Type
  G
• Ambient Temperature (Celsius)
  -40 to 50
• Construction
  Poppet
• Length
  3.56 in (90 mm)
• Default Position
  Normally Open
• Weight (kg)
  1.4
• Size
  3/8
• Seal Material
  Fluorocarbon
• Inlet Pipe Size
  3/8"
Height (mm)
180
Return
Spring
Duty Rating
Continuous Duty
Poppet/Spool Material
Aluminum and Stainless Steel
Pilot Type
Internal/External
Series
21
Operating Pressure (bar)
2 to 10
Media Temperature (Celsius)
-40 to 80
Weight
3.0 lb (1.4 kg)
Connection
Hardwired
Operating Pressure
30 to 150 psig (2 to 10 bar)
Application
Low Temperature
Width
3.03 in (77 mm)
Voltage
24 VDC
Valve Body Material
Cast Aluminum
Outlet Pipe Size
3/8"
Function
2/2 Single Solenoid
Fluid Media
Filtered air
Ambient Temperature
-40 to 120 F (-40 to 50 C)
