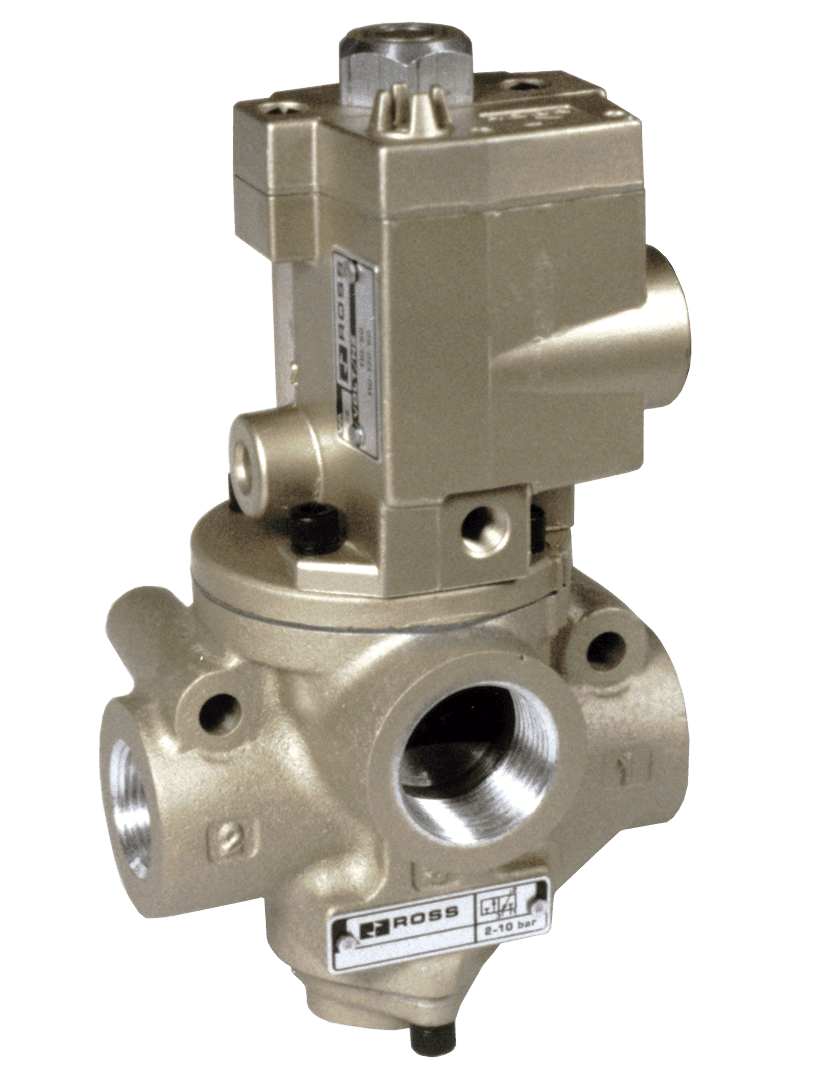

D2153C6905 ROSS Controls Electronic Components

Product Details

• Series
  21
• Fluid Media
  Filtered air
• Length (mm)
  168
• Outlet Pipe Size
  1"
• Manual Override
  Not Included
• Seal Material
  Fluorocarbon
• Size
  1-1/2
• Actuation
  Pneumatic
• Operating Pressure
  Vacuum to 150 psig (vacuum to 10 bar)
• Function
  3/2 Single Pilot
• Return
  Spring
• Pilot Supply Minimum
  Equal to or greater than inlet pressure
• Height (mm)
  190
• Cv (1-2)
  24.0
• Thread Type
  G
• Inlet Pipe Size
  1"
• Width (mm)
  123
• Valve Type
  Directional Control
• Media Temperature
  -40 to 175 F (-40 to 80 C)
• Length
  6.63 in (168 mm)
Cv (2-3)
40.0
Default Position
Normally Closed
Operating Pressure (bar)
Vacuum to 10
Weight
11.0 lb (5.0 kg)
Application
Vacuum
Poppet/Spool Material
Aluminum and Stainless Steel
Weight (kg)
5
Pilot Type
External
Ambient Temperature
-40 to 175 F (-40 to 80 C)
Valve Body Material
Aluminum
Height
7.49 in (190 mm)
Width
4.84 in (123 mm)
Construction
Poppet
Media Temperature (Celsius)
-40 to 80
Exhaust Pipe Size
1-1/2"
Mounting
Inline
Ambient Temperature (Celsius)
-40 to 80
