9577K2010W ROSS Controls Electronic Components
Part#:9577K2010W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

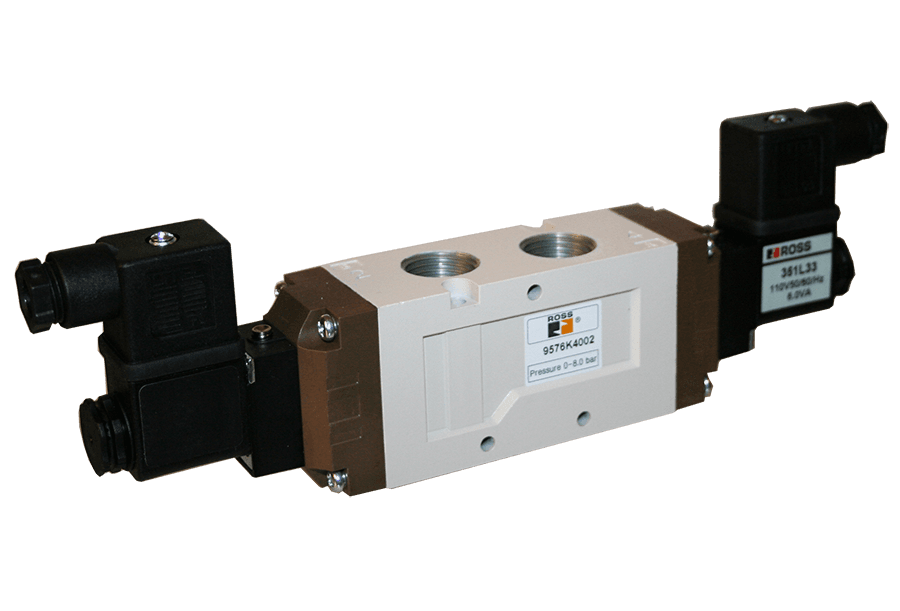

95 Series 5/3 Double Solenoid Valve, Closed Center, Ports (In-Out) 1/4" NPT, 24 VDC
Product Details
- Thread Type NPT
- Duty Rating Continuous Duty
- Operating Pressure 22.5 to 150 psig (1.5 to 10 bar)
- Pilot Type Internal
- Weight (kg) 0.57
- Default Position Normally Closed
- Media Temperature (Celcius) 5 to 60
- Inlet Pipe Size 1/4"
- Seal Material Buna-N, Viton
- Mounting Inline/Manifold
- Ambient Temperature (Celcius) 5 to 60
- Outlet Pipe Size 1/4"
- Length 1.04 in (26.5 mm)
- Exhaust Pipe Size 1/8"
- Fluid Media Filtered Air
- Function 5/3 Double Solenoid
- Valve Type Directional Control
- Power Consumption 2.5 watts
- Actuation Electrical
- Height 2.63 in (67.0 mm)
- Width 7.87 in (200.0 mm)
- Application General
- Voltage 24 VDC
- Pilot Supply Minimum equal to or greater than inlet pressure
- Center Position Closed Center
- Width (mm) 200
- Ambient Temperature 41 to 140 F (5 to 60 C)
- Media Temperature 41 to 140 F (5 to 60 C)
- Length (mm) 26.5
- Return Spring
- Construction Spool
- Manual Override Non-locking
- Operating Pressure (bar) 1.5 to 10
- Poppet/Spool Material Aluminum
- Connection EN 175301-803 Industrial Form B
- Avg Cv 1.1
- Height (mm) 67
- Series 95
- Valve Body Material Die Cast Aluminum
- Weight 1.26 lb (0.57 kg)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9577K2010W on Applied Automation is $94.00. Order now.
