8076B6351W ROSS Controls Electronic Components
Part#:8076B6351W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

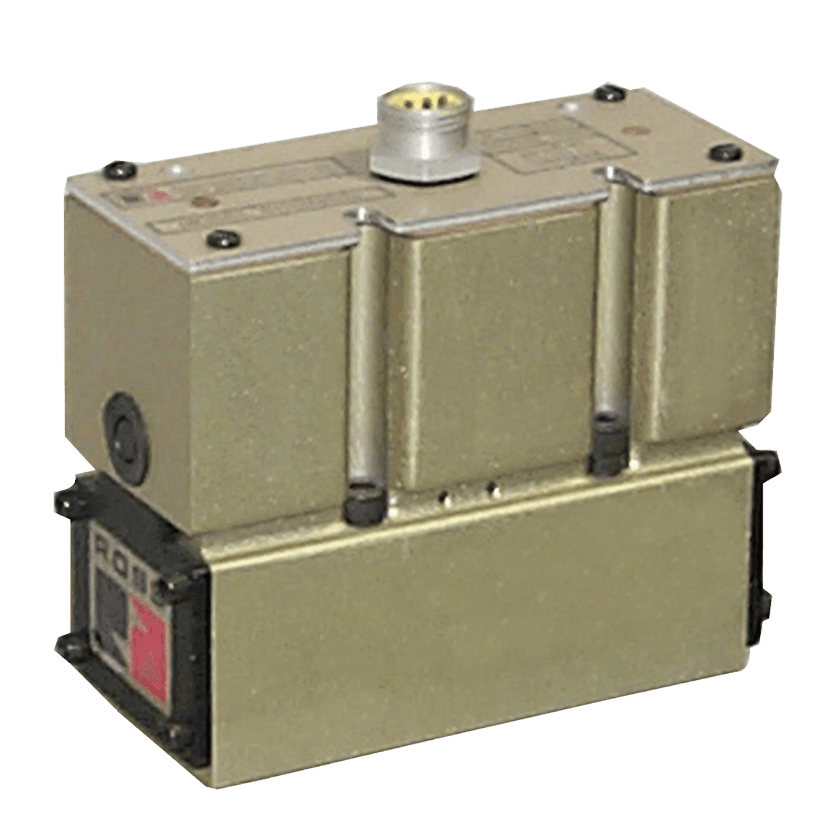

SAE Size 500, 80 Series, 5/2 Single Solenoid Valve, Spool & Sleeve, Hardwire, 24 VDC
Product Details
- Valve Standard SAE
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Height 4.8 in (121 mm)
- Poppet/Spool Material Stainless Steel
- Manual Override Non-locking
- Width (mm) 248
- Weight 8.3 lb (3.7 kg)
- Construction Spool & Sleeve
- Pilot Type Internal/External
- Width 9.80 in (248 mm)
- Return Spring
- Duty Rating Continuous Duty
- Operating Pressure Vacuum to 150 psig (10 bar)
- Seal Material Buna-N
- Application General
- Media Temperature 40 to 175 F (4 to 80 C)
- Length 3.0 in (76 mm)
- Power Consumption 14 watts
- Actuation Electrical
- Mounting Base Mounted
- Fluid Media Filtered air
- Weight (kg) 3.7
- Series 80
- Media Temperature (Celcius) 4 to 80
- Connection Hardwired
- Default Position Normally Open
- Ambient Temperature (Celcius) 4 to 50
- Length (mm) 76
- Valve Body Material Cast Aluminum
- Valve Type Directional Control
- Size 500
- Operating Pressure (bar) Vacuum to 10
- Height (mm) 121
- Function 5/2 Single Solenoid
- Avg Cv 8.2
- Pilot Supply Minimum equal to or greater than inlet pressure
- Voltage 24 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8076B6351W on Applied Automation is $702.75. Order now.
