2776B6003W ROSS Controls Electronic Components
Part#:2776B6003W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

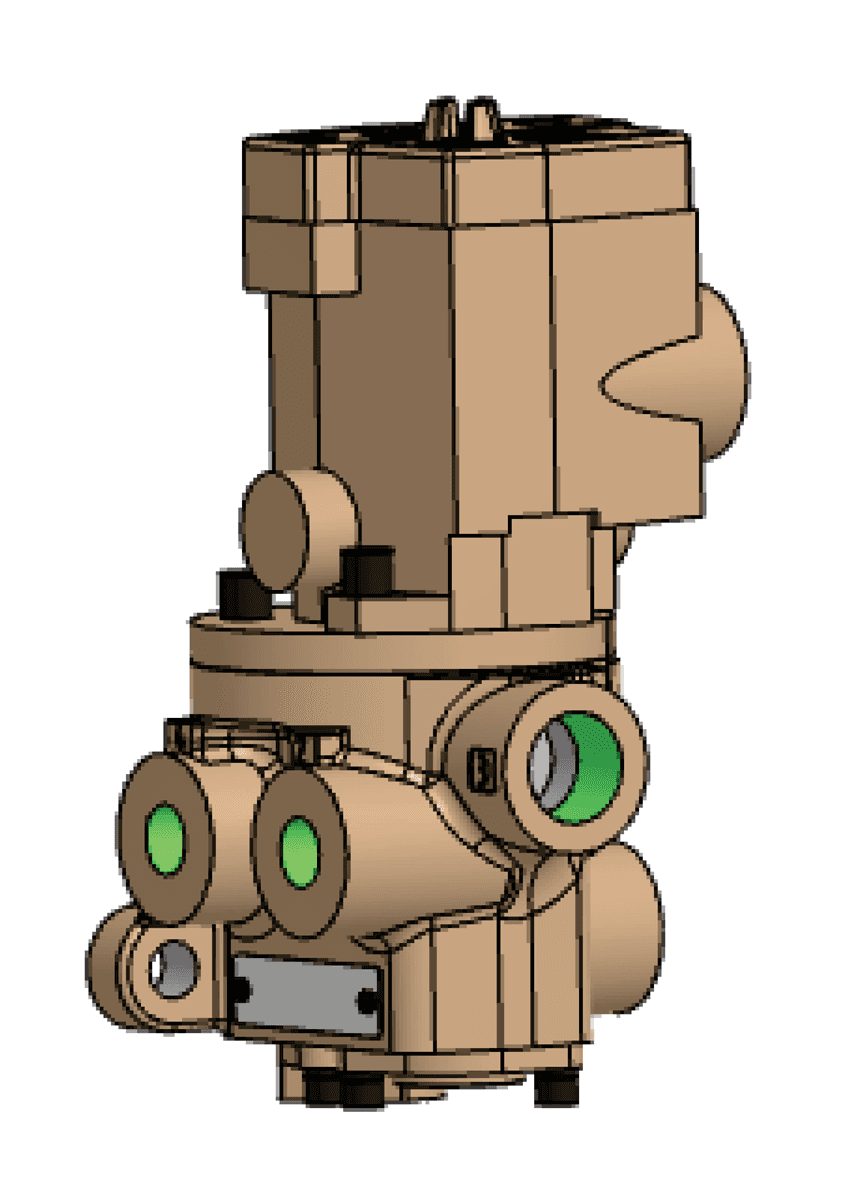

27 Series, 4/2 Double Direct Solenoid Valve, Normally Open, Detented, Ports (In-Out) 1", NPT, Ports (Exhaust) 1-1/2" NPT, 24 VDC
Product Details
- Connection Hardwired
- Seal Material Buna-N
- Outlet Pipe Size 1"
- Cv (2-3) 26
- Application General
- Valve Body Material Cast Aluminum
- Inlet Pipe Size 1"
- Weight (kg) 5.1
- Media Temperature 40 to 175 F (4 to 80 C)
- Actuation Electrical
- Size 1-1/4"
- Length 9.30 in (236 mm)
- Media Temperature (Celsius) 4 to 80
- Poppet/Spool Material Acetal, Stainless Steel
- Pilot Supply Minimum equal to or greater than inlet pressure
- Width 8.19 in (208 mm)
- Thread Type NPT
- Duty Rating Continuous Duty
- Exhaust Pipe Size 1-1/2"
- Cv (1-4) 19
- Height 10.4 in (264 mm)
- Mounting Inline
- Power Consumption 20 watts
- Return Detented
- Width (mm) 208
- Voltage 24 VDC
- Fluid Media Filtered Air
- Ambient Temperature (Celsius) 4 to 50
- Weight 11.3 lb (5.1 kg)
- Manual Override Non-locking
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Default Position Normally Open
- Cv (4-3) 26
- Series 27
- Operating Pressure (bar) 1 to 10
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Length (mm) 236
- Height (mm) 264
- Construction Poppet
- Valve Type Directional Control
- Pilot Type Internal/External
- Function 4/2 Double Direct Solenoid
- Cv (1-2) 19
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
