2751A6011 ROSS Controls Electronic Components
Part#:2751A6011
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

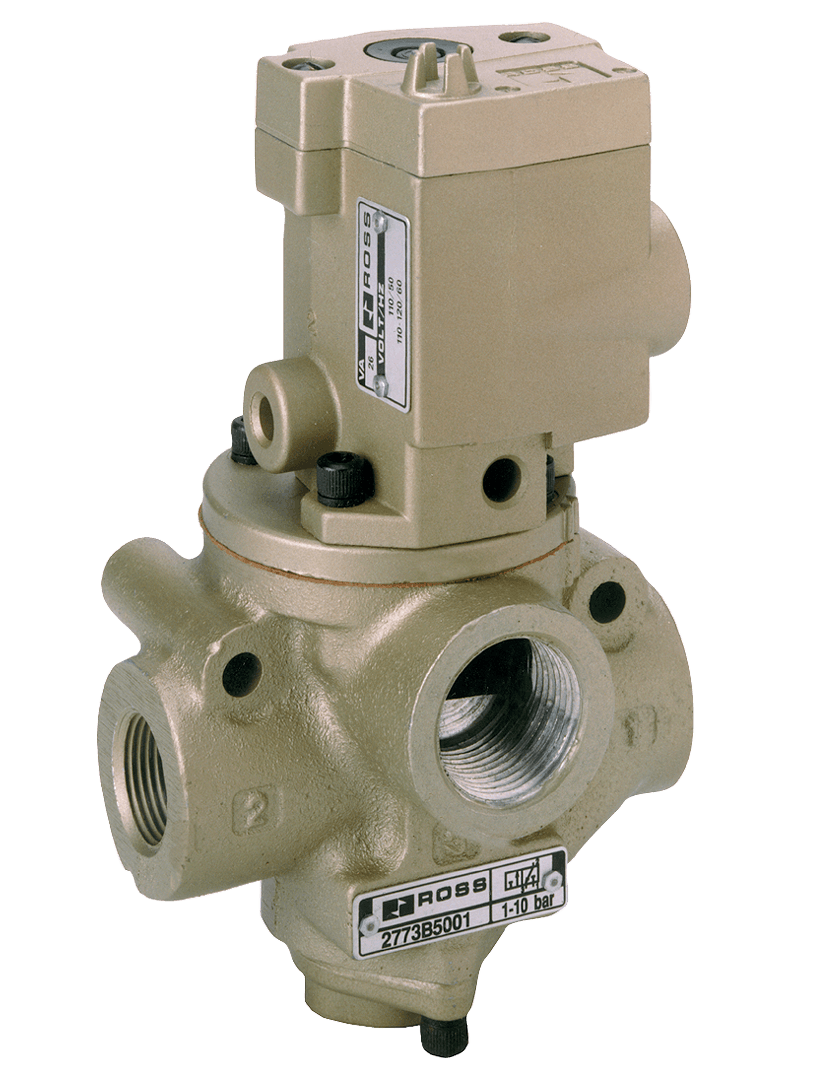

27 Series, 2/2 Single Air Pilot Valve, Normally Closed, Spring Return, Ports (In-Out) 1" NPT
Product Details
- Function 2/2 Single Pilot
- Series 27
- Operating Pressure (bar) 1 to 10
- Weight (kg) 0.9
- Return Spring
- Pilot Supply Minimum equal to or greater than inlet pressure
- Weight 2.0 lb (0.9 kg)
- Application General
- Construction Poppet
- Ambient Temperature (Celsius) 4 to 80
- Fluid Media Filtered Air
- Seal Material Buna-N
- Valve Body Material Cast Aluminum
- Outlet Pipe Size 1"
- Thread Type NPT
- Pilot Type External
- Media Temperature (Celsius) 4 to 80
- Width (mm) 79
- Length 4.56 in (116 mm)
- Height 4.42 in (112 mm)
- Mounting Inline
- Width 3.11 in (79 mm)
- Height (mm) 112
- Actuation Pneumatic
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Length (mm) 116
- Valve Type Directional Control
- Ambient Temperature 40 to 175 F (4 to 80 C)
- Poppet/Spool Material Acetal, Stainless Steel
- Avg Cv 9
- Default Position Normally Closed
- Media Temperature 40 to 175 F (4 to 80 C)
- Size 3/4"
- Inlet Pipe Size 1"
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2751A6011 on Applied Automation is $226.25. Order now.
