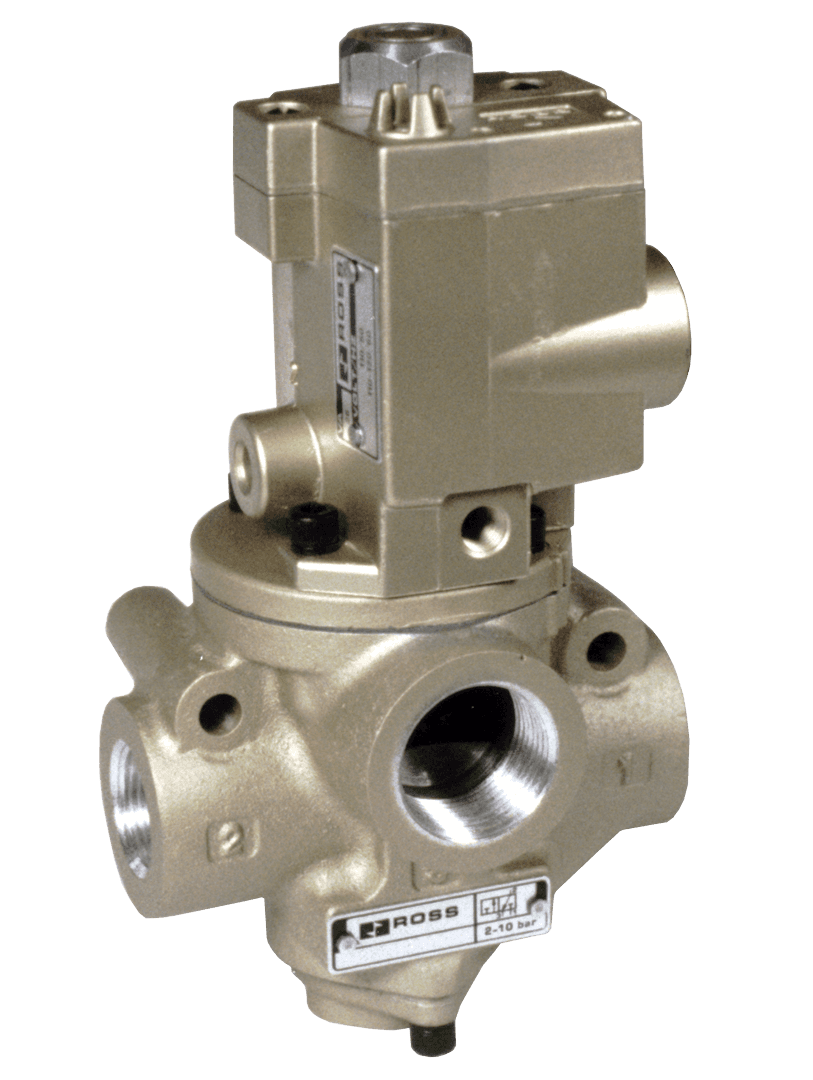

2174A4912Z ROSS Controls Electronic Components

Product Details

• Thread Type
  NPT
• Pilot Supply Minimum
  Equal to or greater than inlet pressure
• Ambient Temperature
  -40 to 120 F (-40 to 50 C)
• Height (mm)
  206
• Return
  Spring
• Media Temperature
  -40 to 175 F (-40 to 80 C)
• Size
  3/4
• Function
  3/2 Single Solenoid
• Height
  8.10 in (206 mm)
• Series
  21
• Poppet/Spool Material
  Aluminum and Stainless Steel
• Outlet Pipe Size
  1/2"
• Weight
  3.3 lb (1.5 kg)
• Application
  Vacuum
• Seal Material
  Fluorocarbon
• Power Consumption
  87 VA inrush, 30 VA holding on 50 or 60 Hz
• Length
  4.45 in (113 mm)
• Fluid Media
  Filtered air
• Voltage
  110/120 VAC
• Weight (kg)
  1.5
Mounting
Inline
Actuation
Electrical
Manual Override
Non-locking
Width (mm)
91
Valve Type
Directional Control
Operating Pressure
Vacuum to 150 psig (vacuum to 10 bar)
Default Position
Normally Open
Ambient Temperature (Celsius)
-40 to 50
Construction
Poppet
Media Temperature (Celsius)
-40 to 80
Exhaust Pipe Size
1"
Length (mm)
113
Connection
Hardwired
Valve Body Material
Aluminum
Inlet Pipe Size
1/2"
Width
3.59 in (91 mm)
Cv (1-2)
6.5
Duty Rating
Continuous Duty
Operating Pressure (bar)
Vacuum to 10
Pilot Type
Internal/External
Cv (2-3)
7.0
