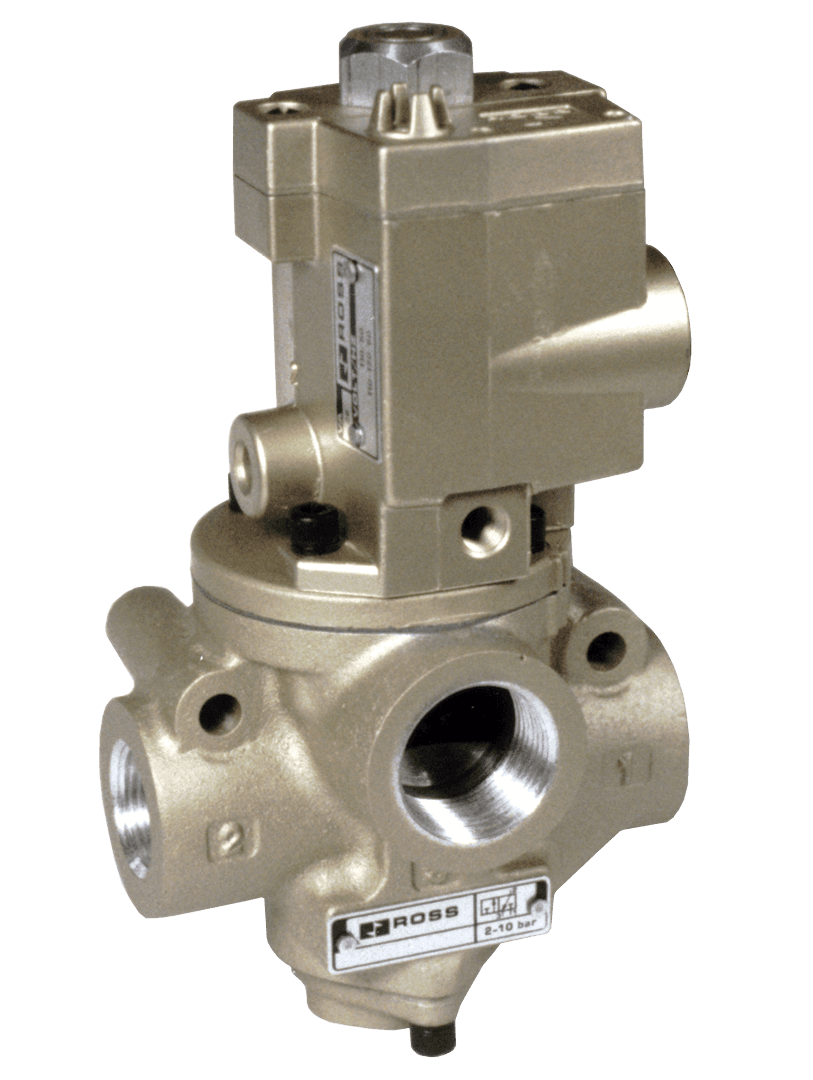

2173B7901Z ROSS Controls Electronic Components

Product Details

• Fluid Media
  Filtered air
• Ambient Temperature (Celsius)
  -40 to 50
• Connection
  Hardwired
• Cv (1-2)
  29.0
• Pilot Supply Minimum
  Equal to or greater than inlet pressure
• Series
  21
• Return
  Spring
• Construction
  Poppet
• Weight
  7.5 lb (3.4 kg)
• Height
  10.57 in (271 mm)
• Valve Type
  Directional Control
• Width
  4.09 in (104 mm)
• Size
  1-1/4
• Height (mm)
  271
• Operating Pressure
  Vacuum to 150 psig (vacuum to 10 bar)
• Manual Override
  Non-locking
• Mounting
  Inline
• Weight (kg)
  3.4
• Poppet/Spool Material
  Aluminum and Stainless Steel
• Thread Type
  NPT
Inlet Pipe Size
1-1/4"
Actuation
Electrical
Cv (2-3)
39.0
Seal Material
Fluorocarbon
Application
Vacuum
Duty Rating
Continuous Duty
Power Consumption
87 VA inrush, 30 VA holding on 50 or 60 Hz
Width (mm)
104
Length (mm)
168
Media Temperature (Celsius)
-40 to 80
Operating Pressure (bar)
Vacuum to 10
Pilot Type
Internal/External
Ambient Temperature
-40 to 120 F (-40 to 50 C)
Exhaust Pipe Size
1-1/2"
Function
3/2 Single Solenoid
Media Temperature
-40 to 175 F (-40 to 80 C)
Valve Body Material
Aluminum
Voltage
110/120 VAC
Default Position
Normally Closed
Length
6.63 in (168 mm)
Outlet Pipe Size
1-1/4"
