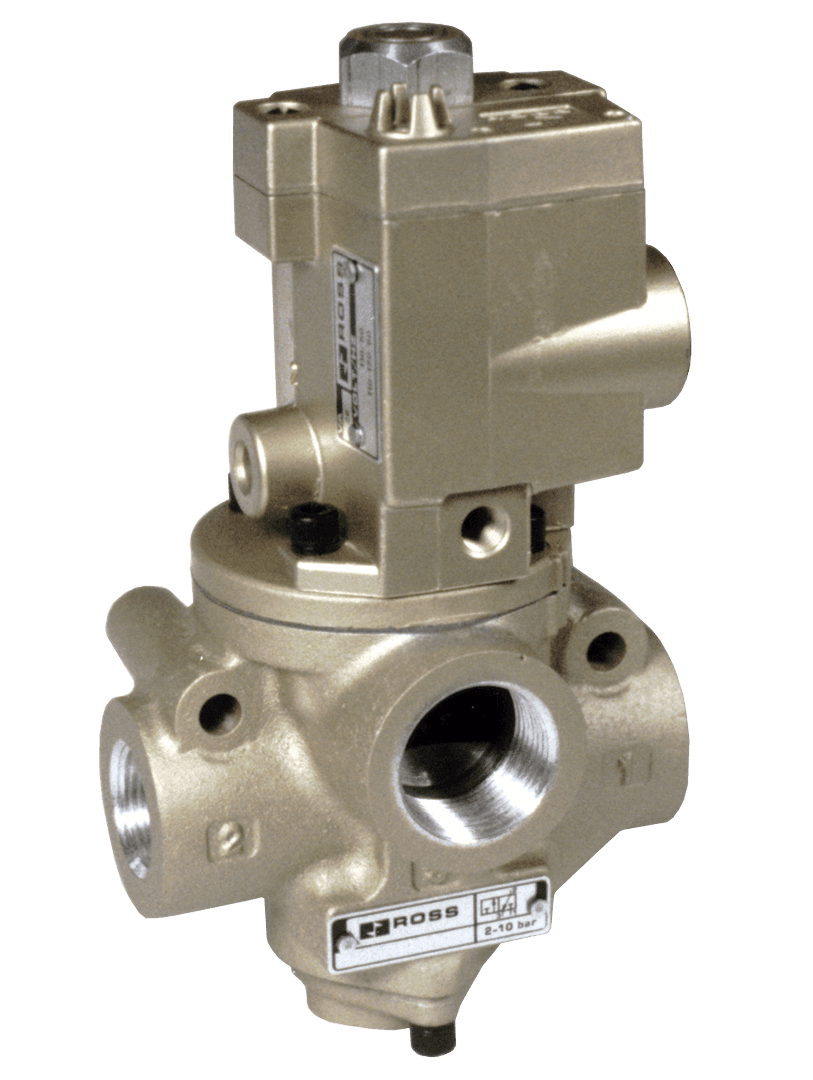

2173B7917W ROSS Controls Electronic Components

Product Details

• Mounting
  Inline
• Series
  21
• Fluid Media
  Filtered air
• Seal Material
  Fluorocarbon
• Pilot Supply Minimum
  Equal to or greater than inlet pressure
• Width (mm)
  104
• Function
  3/2 Single Solenoid
• Height (mm)
  271
• Construction
  Poppet
• Media Temperature (Celsius)
  -40 to 80
• Pilot Type
  Internal/External
• Outlet Pipe Size
  1-1/4"
• Cv (1-2)
  29.0
• Application
  Vacuum
• Operating Pressure (bar)
  Vacuum to 10
• Default Position
  Normally Open
• Length
  6.63 in (168 mm)
• Inlet Pipe Size
  1-1/4"
• Valve Type
  Directional Control
• Actuation
  Electrical
Size
1-1/4
Weight (kg)
3.4
Voltage
24 VDC
Power Consumption
14 watts
Ambient Temperature
-40 to 120 F (-40 to 50 C)
Cv (2-3)
39.0
Duty Rating
Continuous Duty
Poppet/Spool Material
Aluminum and Stainless Steel
Exhaust Pipe Size
1-1/2"
Weight
7.5 lb (3.4 kg)
Connection
Hardwired
Operating Pressure
Vacuum to 150 psig (vacuum to 10 bar)
Ambient Temperature (Celsius)
-40 to 50
Length (mm)
168
Thread Type
NPT
Valve Body Material
Aluminum
Width
4.09 in (104 mm)
Return
Spring
Media Temperature
-40 to 175 F (-40 to 80 C)
Manual Override
Non-locking
Height
10.57 in (271 mm)
