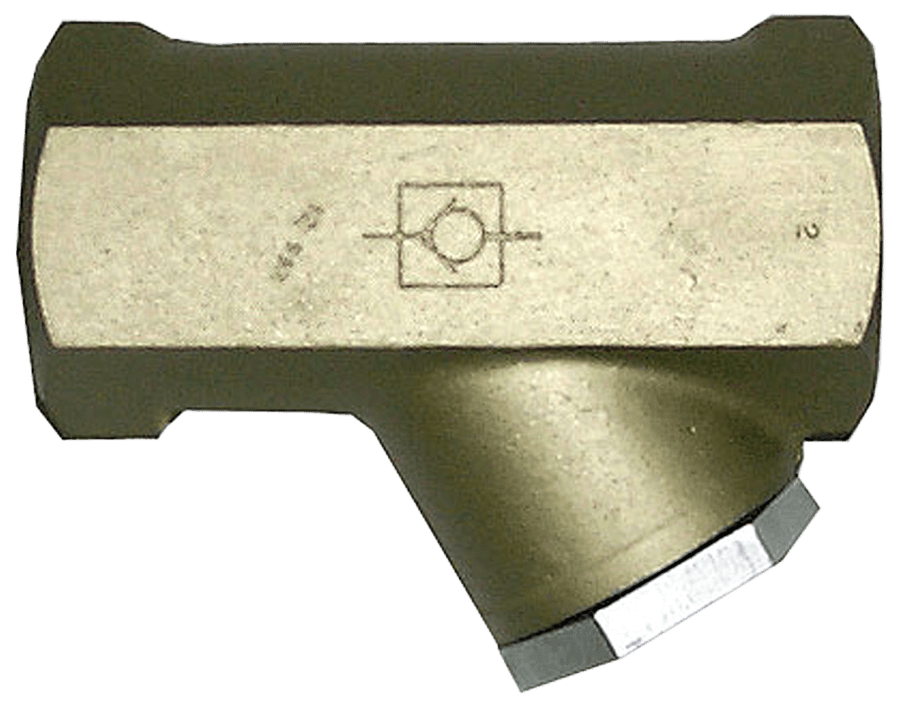

1968A9117 ROSS Controls Electronic Components

Product Details

• Outlet Pipe Size
  2-1/2"
• Inlet Pipe Size
  2-1/2"
• Avg Cv
  50
• Weight (kg)
  2.1
• Height (mm)
  168.9
• Weight
  4.7 lb (2.1 kg)
• Height
  6.65 in (168.9 mm)
• Width (mm)
  89.2
• Length
  7.47 in (189.7 mm)
• Width
  3.51 in (89.2 mm)
• Length (mm)
  189.7
• Size
  2"
• Operating Pressure
  5 to 150 psig (0.3 to 10 bar)
• Valve Body Material
  Cast Aluminum
• Pilot Supply Minimum
  equal to or greater than inlet
• Fluid Media
  Filtered Air
• Operating Pressure (bar)
  0.3 to 10
• Ambient Temperature (Celsius)
  -40 to 80
• Media Temperature (Celsius)
  -40 to 80
• Media Temperature
  -40 to 175 F (-40 to 80 C)
Ambient Temperature
-40 to 175 F (-40 to 80 C)
Function
2/2
Series
19
Actuation
Pneumatic
Application
High Capacity
Construction
Poppet
Thread Type
NPT
Mounting
Inline
Valve Type
Check Valve
