VT-IPM2M-113-D Red Lion Industrial Automation Components
Part#:VT-IPM2M-113-D
Manufacturer:Red Lion
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

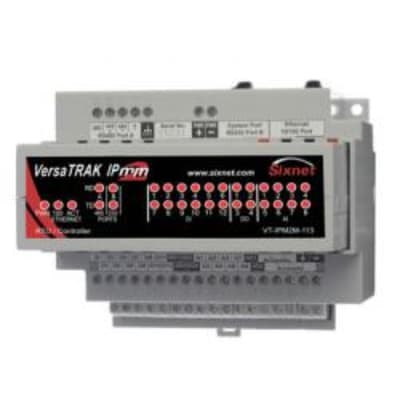

Red Lion VT-IPM2M-113-D is a Mini Industrial Remote Terminal Unit (RTU) designed for automation applications, utilizing UL 94V-0 materials for its construction and offering an IP20 degree of protection. It operates within an ambient air temperature range of -40 to +70°C and is mounted using a DIN rail mounting plate. This RTU features 4 digital outputs (30Vdc; 1A; Source), 12 digital inputs (Sink/Source), and 8 analog inputs (4-20mA / 0-5Vdc), supporting a wide range of sensors and actuators. Communication is facilitated through RS-232, RS-485, Ethernet, Modbus TCP, and DNP3 protocols, with connectivity options including 5 RJ45 ports for Ethernet and 1 RJ45 port for RS-232. It is powered by an Industrial PowerPC 32-bit processor, runs on an embedded Linux operating system, and has a connection capacity of 16000 Sixnet nodes and 247 Modbus nodes. Memory capacity includes 32MB FLASH, 512KB NVRAM, and 32MB DRAM, with a supply voltage requirement of 10-30Vdc (12Vdc / 24Vdc).
Product Details
- Secondary brand Sixnet
- Memory capacity 32MB (FLASH) 512KB (NVRAM) 32MB (DRAM)
- Digital inputs 12 x digital inputs (Sink/Source)
- Equivalent to VTIPM2M113D
- Product series / family name RTUs
- Connection type 5 x RJ45 ports (Ethernet) 1 x RJ45 port (RS-232)
- Degree of protection IP20
- Primary brand Red Lion
- Supply voltage (DC) 10-30Vdc (12Vdc / 24Vdc)
- Mounting mode DIN rail Mounting plate
- Ambient air temperature for operation -40...+70 °C
- Operating System (OS) Linux (embedded)
- Sub-range name IPm2m
- Functions Mini Industrial Remote Terminal Unit (RTU)
- Communication protocol RS-232 RS-485 Ethernet Modbus TCP DNP3
- Analog inputs 8 x analog inputs (4-20mA / 0-5Vdc)
- Programming languages Sixnet ISaGRAF (IEC61131 compliant language) High level C programming (Linux open software) Ladder diagram (LD) / Relay symbol language Flow charting SFC
- Material UL 94V-0 materials
- Digital outputs 4 x digital outputs (30Vdc; 1A; Source)
- Order code / Manufacturer SKU VT-IPM2M-113-D
- Processor type Industrial PowerPC 32-bit processor
- Compliant with standard(s) CE EMI emissions FCC part 15 ANSI C37.90 (Surge withstand) IEEE-472 (Surge withstand) IEC 61131 IEC 60068-2-6 (vibration) EN 61326-1 EN 61000-4-2/3/4/6 EN 61010-1 EN 55022 ICES-003 class A UL 508 CSA C22.2 No.14 ABS UL Class I Division 2 listed UL 1604 (H
- Connection capacity 16000 Sixnet nodes 247 Modbus nodes
- Main function RTU (Remote Terminal Unit)
- Design data log.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VT-IPM2M-113-D on Applied Automation is $1,603.00. Order now.
VT-IPM2M-113-D Related Documents
Manufacturer warranty
VT-IPM2M-113-D Red Lion
$1,603.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$1,603.00
$1,603.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare VT-IPM2M-113-D with other Industrial Automation Components products
Secondary brand
Memory capacity
Digital inputs
Equivalent to
Product series / family n...
Connection type
Degree of protection
Primary brand
Supply voltage (DC)
Mounting mode
Selected product
VT-IPM2M-113-D
Red Lion
Red Lion VT-IPM2M-113-D is a Mini Industrial Remote Terminal Unit (RTU) designed for automation appl...
Secondary brandSixnet
Memory capacity32MB (FLASH) 512KB (NVRAM) 3...
Digital inputs12 x digital inputs (Sink/So...
Equivalent toVTIPM2M113D
Product series / family nameRTUs
Connection type5 x RJ45 ports (Ethernet) 1 ...
Degree of protectionIP20
Primary brandRed Lion
Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc)
Mounting modeDIN rail Mounting plate
E2A-M18KS08-WP-C3 2M
Omron
E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...
Secondary brand-
Memory capacity-
Digital inputs-
Equivalent to-
Product series / family name-
Connection type-
Degree of protection-
Primary brand-
Supply voltage (DC)-
Mounting mode-
Secondary brand-
Memory capacity-
Digital inputs-
Equivalent to-
Product series / family name-
Connection type-
Degree of protection-
Primary brand-
Supply voltage (DC)-
Mounting mode-
About the manufacturer
Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.
