PXU21DC0 Red Lion Industrial Automation Components

PXU21DC0 on Applied Automation
Red Lion

Part#:PXU21DC0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

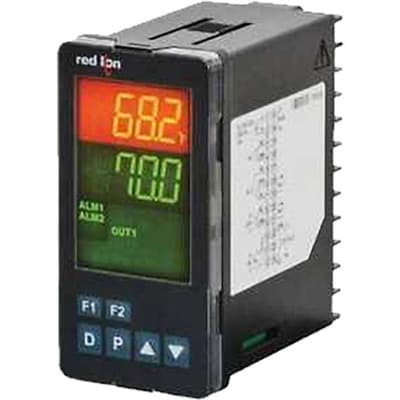

Red Lion PXU21DC0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a logic/S.S.R. control output and a secondary relay control output, housed in a 1/8 DIN vertical enclosure measuring 49.5mm wide by 96.5mm high, with 12mm orange/green digits for display. This part of the PXU PID controllers series offers an IP65 NEMA 4X degree of protection and requires a 24Vdc supply voltage. It supports a 10Hz analog input sampling rate and communicates via RS-485 protocol. The PXU21DC0 includes 1 digital output (S.S.R.), 1 digital output (contact type) for secondary control, and 2 analog inputs accommodating various signal types with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features heater current monitoring and 1 digital input for user input, enhancing its functionality in process control applications.

Product Details

  • Product series / family name
    Process controllers
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Digital outputs
    1 x digital output (S.S.R.) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Protection functions
    Heater current monitoring
  • Primary brand
    Red Lion
  • Functions
    Digital temperature / process PID controller
  • Digital inputs
    1 x digital input (user input)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Supply voltage (DC)
    24Vdc
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy) 1 x analog input (0-5Vdc / 1-5Vdc / 0-10Vdc / 0-20mA / 4-20mA) (Remote setpoint input)
  • Frequency
    10Hz analog input sampling rate
  • Main function
    Temperature controller (Digital)
  • Design
    logic/S.S.R. control output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Communication protocol
    RS-485
  • Ambient air temperature for operation
    0...+50 °C
  • Order code / Manufacturer SKU
    PXU21DC0
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU21DC0 on Applied Automation is $223.00. Order now.
