PXU200B0 Red Lion Industrial Automation Components

PXU200B0 on Applied Automation
Red Lion

Part#:PXU200B0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU200B0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a logic/S.S.R. control output and is part of the PXU PID controllers series, fitting a 1/16 DIN (48x48mm) space with display digits of 11mm in orange and 7mm in green. This controller offers an IP65 NEMA 4X degree of protection and requires a 24Vdc supply voltage. It has a 10Hz analog input sampling rate and includes 1 x digital output (S.S.R.), 2 x digital outputs (contact type) for alarms, and 1 x analog input supporting various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features heater current monitoring for protection.

Product Details

  • Product series / family name
    Process controllers
  • Supply voltage (DC)
    24Vdc
  • Functions
    Digital temperature / process PID controller
  • Main function
    Temperature controller (Digital)
  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Sub-range name
    PXU PID controllers series
  • Design
    logic/S.S.R. control output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Degree of protection
    IP65 NEMA 4X
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Mounting mode
    Flush
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Replaces
    T4820010 T1620010
  • Digital outputs
    1 x digital output (S.S.R.) 2 x digital outputs (contact type) (ALARM)
  • Frequency
    10Hz analog input sampling rate
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Ambient air temperature for operation
    0...+50 °C
  • Order code / Manufacturer SKU
    PXU200B0
  • Protection functions
    Heater current monitoring

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU200B0 on Applied Automation is $167.00. Order now.

PXU200B0 Related Documents

Red Lion - PXU - Installation Guide.pdfRed Lion - PXU - Manual.pdfRed Lion - PXU - Data Sheet.pdf

Manufacturer warranty

PXU200B0 Red Lion

$167.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$167.00

$167.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU200B0 with other Industrial Automation Components products

Product series / family n...

Supply voltage (DC)

Functions

Main function

Primary brand

Display

Sub-range name

Design

Degree of protection

Compliant with standard(s...

Selected product

PXU200B0
Backordered
PXU200B0
Red Lion

Red Lion PXU200B0 is a digital temperature/process PID controller designed for flush mounting and op...

Product series / family nameProcess controllers

Supply voltage (DC)24Vdc

FunctionsDigital temperature / proces...

Main functionTemperature controller (Digi...

Primary brandRed Lion

Display2 rows x 4-digits negative i...

Sub-range namePXU PID controllers series

Designlogic/S.S.R. control output ...

Degree of protectionIP65 NEMA 4X

Compliant with standard(s)CE EN 61326-1 immunity to in...

E2A-M18KS08-WP-C3 2M
1 in stock
E2A-M18KS08-WP-C3 2M
Omron

E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...

Product series / family name-

Supply voltage (DC)-

Functions-

Main function-

Primary brand-

Display-

Sub-range name-

Design-

Degree of protection-

Compliant with standard(s)-

G36-10-01
20 in stock
G36-10-01
SMC

G(A)36, Pressure Gauge for General Purpose (O.D. 37)

Product series / family name-

Supply voltage (DC)-

Functions-

Main function-

Primary brand-

Display-

Sub-range name-

Design-

Degree of protection-

Compliant with standard(s)-

About the manufacturer

Red Lion

Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Recently viewed products

Relevant products

PXU21CE0 on Applied Automation

PXU21CE0

Verified stock: 0

Red Lion PXU21CE0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This model, part of the PXU PID controllers series, features a 1/4 DIN size (96mm x 96mm / 3.77" x 3.77") and offers a degree of protection rated at IP65 NEMA 4X. It is equipped with a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. Communication is facilitated through an RS-485 protocol. The PXU21CE0 includes one digital output (S.S.R.), one digital output (contact type) for secondary control, and one analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. It also features heater current monitoring for protection, one digital input for user input, and one analog output for retransmission. The design includes a 22mm orange / 14mm green digit display for clear visibility.

Red Lion

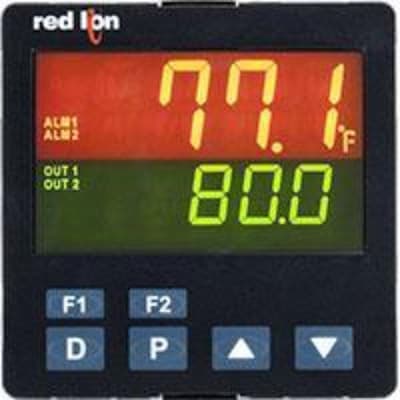

PXU21DE0 on Applied Automation
