PXU21B20 Red Lion Industrial Automation Components

PXU21B20 on Applied Automation
Red Lion

Part#:PXU21B20

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU21B20 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and is equipped with a design that includes 1 user input, RS-485 communication, C.T. input logic, S.S.R. control output, and a secondary relay control output, all housed within a 1/16 DIN (48x48mm) form factor featuring 11mm orange and 7mm green digits. The supply voltage (AC) requirement spans 100-240Vac, accommodating a wide range of power inputs. This part of the PXU PID controllers series measures 1/16 DIN (W48mm x H48mm / 1.89" x 1.89") and offers a degree of protection rated at IP65 NEMA 4X. It has a frequency of 10Hz for analog input sampling and utilizes the RS-485 protocol for communication. The PXU21B20 includes 1 x digital output (S.S.R.), 1 x digital output (contact type) for secondary control, and 1 x analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types, and RTD, with a 100ms sample period and 0.1 to 1° accuracy. It also features heater current monitoring for protection and 1 x digital input for user input.

Product Details

  • Product series / family name
    Process controllers
  • Design
    1 user input RS-485 C.T. input logic/S.S.R. control output secondary rly. control output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Ambient air temperature for operation
    0...+50 °C
  • Frequency
    10Hz analog input sampling rate
  • Main function
    Temperature controller (Digital)
  • Functions
    Digital temperature / process PID controller
  • Digital inputs
    1 x digital input (user input)
  • Degree of protection
    IP65 NEMA 4X
  • Replaces
    T1641110
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Contents
    1 x Current Transformer (CT) 40A/30.7mA ratio - 1/1300
  • Order code / Manufacturer SKU
    PXU21B20
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Digital outputs
    1 x digital output (S.S.R.) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Network frequency
    50/60 Hz
  • Communication protocol
    RS-485
  • Protection functions
    Heater current monitoring
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU21B20 on Applied Automation is $211.00. Order now.

PXU21B20 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Manual.pdf

Manufacturer warranty

PXU21B20 Red Lion

$211.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$211.00

$211.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU21B20 with other Industrial Automation Components products

Product series / family n...

Design

Primary brand

Supply voltage (AC)

Dimensions

Ambient air temperature f...

Frequency

Main function

Functions

Digital inputs

Selected product

PXU21B20
Backordered
PXU21B20
Red Lion

Red Lion PXU21B20 is a digital temperature/process PID controller designed for flush mounting and op...

Product series / family nameProcess controllers

Design1 user input RS-485 C.T. inp...

Primary brandRed Lion

Supply voltage (AC)100-240Vac (100Vac / 110Vac ...

Dimensions1/16 DIN (W48mm x H48mm / 1....

Ambient air temperature for operation0...+50 °C

Frequency10Hz analog input sampling r...

Main functionTemperature controller (Digi...

FunctionsDigital temperature / proces...

Digital inputs1 x digital input (user inpu...

E2A-M18KS08-WP-C3 2M
1 in stock
E2A-M18KS08-WP-C3 2M
Omron

E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...

Product series / family name-

Design-

Primary brand-

Supply voltage (AC)-

Dimensions-

Ambient air temperature for operation-

Frequency-

Main function-

Functions-

Digital inputs-

G36-10-01
20 in stock
G36-10-01
SMC

G(A)36, Pressure Gauge for General Purpose (O.D. 37)

Product series / family name-

Design-

Primary brand-

Supply voltage (AC)-

Dimensions-

Ambient air temperature for operation-

Frequency-

Main function-

Functions-

Digital inputs-

About the manufacturer

Red Lion

Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Recently viewed products

Relevant products

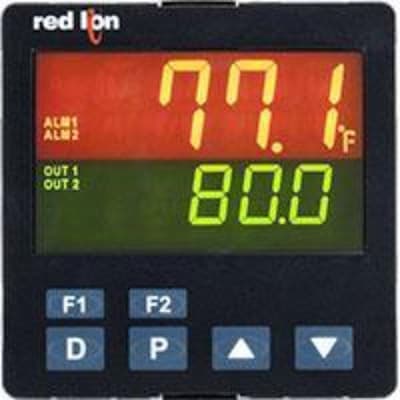

PXU21CE0 on Applied Automation
