PXU20030 Red Lion Industrial Automation Components

PXU20030 on Applied Automation
Red Lion

Part#:PXU20030

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

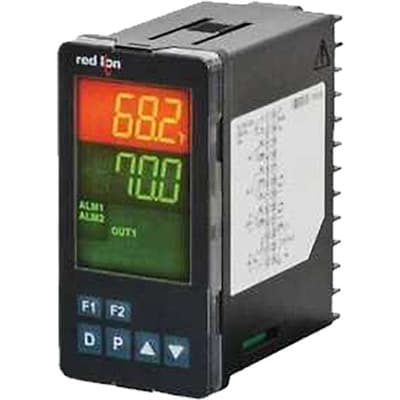

Red Lion PXU20030 is a digital temperature/process PID controller designed for flush mounting. It operates within an ambient air temperature range of 0 to +50°C and supports a network frequency of 50/60 Hz. This controller features a logic/S.S.R. control output and is housed in a 1/8 DIN vertical enclosure measuring 49.5mm wide by 96.5mm high, with 12mm orange/green digits for display. It accepts a supply voltage (AC) ranging from 100 to 240Vac, accommodating various international standards. The PXU20030 is part of the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. It has a frequency of 10Hz for analog input sampling and includes 1 x digital output (S.S.R.) and 2 x digital outputs (contact type) for alarms. The analog input supports multiple signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features protection functions for heater current monitoring.

Product Details

  • Main function
    Temperature controller (Digital)
  • Functions
    Digital temperature / process PID controller
  • Sub-range name
    PXU PID controllers series
  • Design
    logic/S.S.R. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Network frequency
    50/60 Hz
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Product series / family name
    Process controllers
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Order code / Manufacturer SKU
    PXU20030
  • Digital outputs
    1 x digital output (S.S.R.) 2 x digital outputs (contact type) (ALARM)
  • Protection functions
    Heater current monitoring
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Ambient air temperature for operation
    0...+50 °C
  • Frequency
    10Hz analog input sampling rate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU20030 on Applied Automation is $177.00. Order now.
