Part#:PXU11BB0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

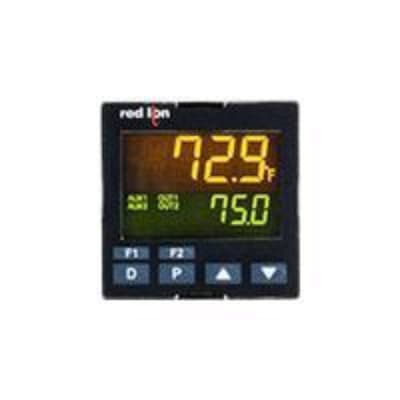

Red Lion PXU11BB0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This model, part of the PXU PID controllers series, features a 1/16 DIN size (48mm x 48mm / 1.89" x 1.89") and offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It is equipped with a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. For communication, it utilizes an RS-485 protocol. The controller includes one digital output (contact type 250Vac 3A), a secondary digital output (contact type), and one analog input compatible with multiple signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features heater current monitoring protection functions and one digital input for user input. The design includes 11mm orange and 7mm green digits for clear display, alongside a primary relay control output and a secondary relay control output for comprehensive control capabilities.

Product Details

  • Primary brand
    Red Lion
  • Sub-range name
    PXU PID controllers series
  • Digital outputs
    1 x digital output (contact type 250Vac 3A) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Product series / family name
    Process controllers
  • Communication protocol
    RS-485
  • Ambient air temperature for operation
    0...+50 °C
  • Frequency
    10Hz analog input sampling rate
  • Main function
    Temperature controller (Digital)
  • Supply voltage (DC)
    24Vdc
  • Design
    1 user input RS-485 C.T. input rly. control output secondary rly. control output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Protection functions
    Heater current monitoring
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Digital inputs
    1 x digital input (user input)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Order code / Manufacturer SKU
    PXU11BB0
  • Functions
    Digital temperature / process PID controller
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Contents
    1 x Current Transformer (CT) 40A/30.7mA ratio - 1/1300
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU11BB0 on Applied Automation is $217.00. Order now.
