PXU11A20 Red Lion Industrial Automation Components

PXU11A20 on Applied Automation
Red Lion

Part#:PXU11A20

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU11A20 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/4 DIN size (96x96mm) with 22mm orange and 14mm green digits for display. The controller is equipped with 2 user inputs, RS-485 relay control output, and a secondary relay control output. It operates on a supply voltage of 100-240Vac, accommodating a wide range of AC inputs. The PXU PID controllers series part has dimensions of 1/4 DIN (W96mm x H96mm / 3.77" x 3.77") and offers a degree of protection rated at IP65 NEMA 4X. With a frequency of 10Hz for analog input sampling rate and communication via RS-485 protocol, it includes 1 x digital output (contact type 250Vac 3A), 1 x digital output (contact type) for secondary control, and 1 x analog input supporting various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types, and RTD with a 100ms sample period and 0.1 to 1° accuracy. The controller also features heater current monitoring and 2 x digital inputs for user-defined functions.

Product Details

  • Primary brand
    Red Lion
  • Design
    2 user inputs RS-485 rly. control output secondary rly. control output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Digital inputs
    2 x digital inputs (user inputs)
  • Replaces
    P4811100 P4811102 T4811000 T4811100 T4810002 T4811102 T1611100 P1611100
  • Product series / family name
    Process controllers
  • Communication protocol
    RS-485
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Functions
    Digital temperature / process PID controller
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Order code / Manufacturer SKU
    PXU11A20
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Frequency
    10Hz analog input sampling rate
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Digital outputs
    1 x digital output (contact type 250Vac 3A) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Network frequency
    50/60 Hz
  • Ambient air temperature for operation
    0...+50 °C
  • Protection functions
    Heater current monitoring

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU11A20 on Applied Automation is $189.00. Order now.

PXU11A20 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Manual.pdfRed Lion - PXU - Installation Guide.pdf

Manufacturer warranty

PXU11A20 Red Lion

$189.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$189.00

$189.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU11A20 with other Industrial Automation Components products

Primary brand

Design

Digital inputs

Replaces

Product series / family n...

Communication protocol

Analog inputs

Main function

Supply voltage (AC)

Functions

Selected product

PXU11A20
Backordered
PXU11A20
Red Lion

Red Lion PXU11A20 is a digital temperature/process PID controller designed for flush mounting with a...

Primary brandRed Lion

Design2 user inputs RS-485 rly. co...

Digital inputs2 x digital inputs (user inp...

ReplacesP4811100 P4811102 T4811000 T...

Product series / family nameProcess controllers

Communication protocolRS-485

Analog inputs1 x analog input (4-20mA / 0...

Main functionTemperature controller (Digi...

Supply voltage (AC)100-240Vac (100Vac / 110Vac ...

FunctionsDigital temperature / proces...

E2A-M18KS08-WP-C3 2M
1 in stock
E2A-M18KS08-WP-C3 2M
Omron

E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...

Primary brand-

Design-

Digital inputs-

Replaces-

Product series / family name-

Communication protocol-

Analog inputs-

Main function-

Supply voltage (AC)-

Functions-

G36-10-01
20 in stock
G36-10-01
SMC

G(A)36, Pressure Gauge for General Purpose (O.D. 37)

Primary brand-

Design-

Digital inputs-

Replaces-

Product series / family name-

Communication protocol-

Analog inputs-

Main function-

Supply voltage (AC)-

Functions-

About the manufacturer

Red Lion

Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Recently viewed products

Relevant products

PXU10020 on Applied Automation

PXU10020

Verified stock: 0

Red Lion PXU10020 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design with relay control output, fitting a 1/8 DIN vertical slot (48x96mm) with 12mm orange/green digits. The supply voltage accommodates a wide range from 100 to 240Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. As part of the PXU PID controllers series, its dimensions are specified as 1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77"), and it offers a degree of protection rated at IP65 NEMA 4X. The frequency for analog input sampling is 10Hz, and it includes 1 x digital output (contact type 250Vac 3A) and 2 x digital outputs (contact type) for alarms. The analog input supports a variety of signals including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, and multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK) as well as RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features protection functions such as heater current monitoring.

Red Lion

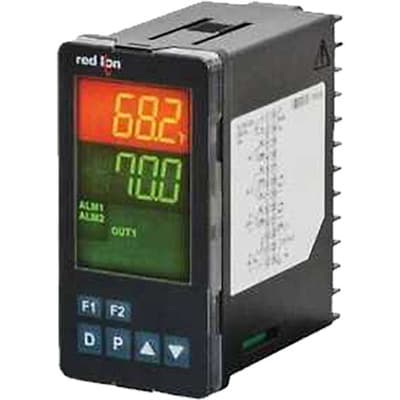

PXU11A30 on Applied Automation
