PAXS0000 Red Lion Industrial Automation Components

PAXS0000 on Applied Automation
Red Lion

Part#:PAXS0000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

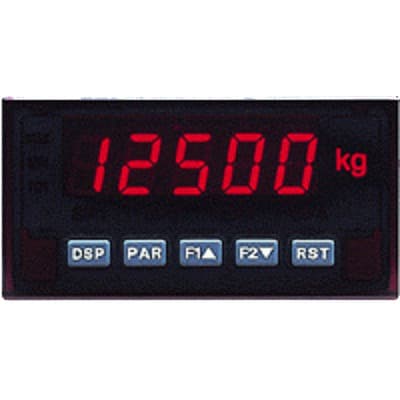

Red Lion PAXS0000 is a dynamometer digital meter designed for strain gauge or load cell measurements. It features a 1/8 DIN (96x48mm) size with 14.2mm red digits and communication capabilities, falling under the PAX series. The dimensions are specified as 1/8 DIN horizontal, measuring W96mm x H48mm (3.80" x 1.95"), and it offers a degree of protection rated at IP65 NEMA 4X. The supply voltage required ranges from 11-36Vdc, accommodating both 12Vdc and 24Vdc systems. It has a 20Hz analog input sampling rate and includes 1 x analog input for -24...+24mV / -240...+240mV strain gauge input DC with 16-bits conversion. Additionally, it features 3 x digital inputs (Sink/Source) for user input and 1 x analog output for retransmission purposes.

Product Details

  • Display
    1 row x 5-digits red characters (14.2mm / 0.56" high) LED display
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Analog outputs
    1 x analog output (retransmission)
  • Degree of protection
    IP65 NEMA 4X
  • Main function
    Dynamometer (Digital)
  • Design
    3 users inputs 1/8 DIN (96x48mm) 14.2mm red digits communication capability
  • Replaces
    IMS03160 IMS03162 IMS03164 IMS03166 IMS03168
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Primary brand
    Red Lion
  • Sub-range name
    PAX series
  • Functions
    Strain gauge / load cell digital meter
  • Product series / family name
    Process indicators
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Analog inputs
    1 x analog input (-24...+24mV / -240...+240mV strain gauge input DC; 16-bits conversion)
  • Order code / Manufacturer SKU
    PAXS0000
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Frequency
    20Hz analog input sampling rate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PAXS0000 on Applied Automation is $600.00. Order now.
