Applied Automation Logo

LD200400 Red Lion Industrial Automation Components

LD200400 on Applied Automation
Red Lion

Part#:LD200400

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

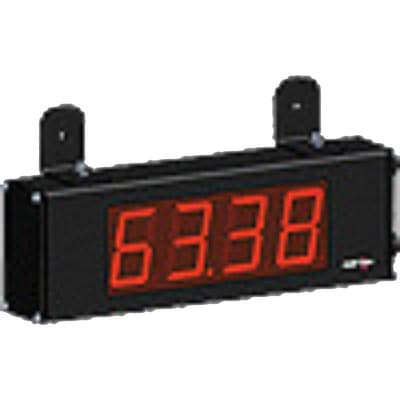

Red Lion LD200400, part of the LD series, is a digital counter designed for versatile applications requiring precise counting. It supports a wide range of supply voltages, including DC options from 21.6Vdc to 250Vdc (24Vdc, 48Vdc, 60Vdc, 72Vdc, 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, 250Vdc) and AC options from 50Vac to 250Vac (48Vac, 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac). This counter is designed for surface mounting and offers a high degree of protection with an IP65 NEMA 4X rating. It features 2 x digital inputs for high-speed counters (up to 20kHz max.; Sink/Source) labeled INPUTS A / B, and 1 x digital input for Sink/Source functions, designated as RESET / USER INPUT.

Product Details

  • Main function
    Counter (Digital)
  • Supply voltage (AC)
    50-250Vac (48Vac / 100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Digital inputs
    2 x digital inputs (high-speed counters; 20kHz max.; Sink/Source) (INPUTS A / B) 1 x digital input (Sink/Source) (RESET / USER INPUT)
  • Functions
    Digital Counter
  • Primary brand
    Red Lion
  • Product series / family name
    Process indicators
  • Display
    1 row x 4-digits red characters (57mm / 2.25" high) LED display
  • Order code / Manufacturer SKU
    LD200400
  • Sub-range name
    LD series
  • Degree of protection
    IP65 NEMA 4X
  • Mounting mode
    Surface
  • Benefits
    Available in 4 or 6 digits versions Single or dual counter with rate indicator Programmable scaling and decimal points Built-in batch counting capability Programmable user input Universally powered dual 5A Form C relay Aluminium NEMA 4x case construction
  • Supply voltage (DC)
    21.6-250Vdc (24Vdc / 48Vdc / 60Vdc / 72Vdc / 100Vdc / 110Vdc / 120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc)
  • Compliant with standard(s)
    CE EN 61010-1 EN 61010-2-030 RoHS compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LD200400 on Applied Automation is $687.00. Order now.

LD200400 Related Documents

Red Lion - LD - Product Manual.pdf

Manufacturer warranty

LD200400 Red Lion
