G09C0000 Red Lion Industrial Automation Components

G09C0000 on Applied Automation
Red Lion

Part#:G09C0000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

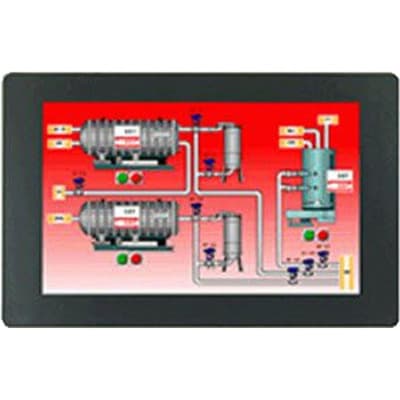

Red Lion G09C0000 is an HMI operator touchscreen panel from the HMI Rugged Graphite series designed for indoor use. It features a connection interface that includes 1 x RJ45 port for Ethernet connectivity, 2 x RJ11 ports supporting RS-232 communication, and an additional RJ45 port for RS-422 / RS-485 connections. This unit supports multiple communication protocols, including RS-232, RS-422, RS-485, and Ethernet. It operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. The G09C0000 is designed to function within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP66 and NEMA 4X. It provides connection capacity for up to 6 x module slots, with a power consumption profile of typically 13 W and a maximum of 45 W. The electrical durability of its backlight is rated at 70,000 hours. For storage, it includes an SD card slot, and it features a screen brightness of 400cd/m2.

Product Details

  • Sub-range name
    HMI Rugged Graphite series
  • Connection capacity
    6 x module slots
  • Electrical durability
    (Backlight) 70 000 hours
  • Primary brand
    Red Lion
  • Functions
    HMI operator touchscreen panel
  • Connection type
    1 x RJ45 port (Ethernet) 2 x RJ11 ports (RS-232) 1 x RJ45 port (RS-422 / RS-485)
  • Compliant with standard(s)
    CE ANSI/ISA 12.12.01 IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL 61010-1 /-2-201 C22.2 No. 213-M1987; 157-92 RoHS compliant ABS UL Listed (Class I Division 2 Groups A/B/C/D) UL Listed (Class II Division 2 Groups
  • Main function
    HMI / Display unit
  • Display
    9" / 800x480pixels (WVGA) touchscreen LCD 16.7M colors display with backlight
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Communication protocol
    RS-232 RS-422 RS-485 Ethernet
  • Degree of protection
    IP66 NEMA 4X
  • Brightness
    400cd/m2
  • Product series / family name
    HMIs (Human-Machine Interfaces)
  • Design
    for indoor use only
  • Power consumption
    (Typical) 13 W(Maximum) 45 W
  • Benefits
    Sleek full-color HMI touchscreens Versatile module and expansion options Rugged environmental specifications Industry-Leading protocol conversion Powerful integration functionality
  • Ambient air temperature for operation
    -20...+60 °C
  • Mounting location
    Indoor
  • Order code / Manufacturer SKU
    G09C0000
  • Storage type
    SD card slot

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of G09C0000 on Applied Automation is $3,623.00. Order now.
