PS1E101 Parker Hannifin Industrial Automation Components
Part#:PS1E101
Manufacturer:Parker Hannifin
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

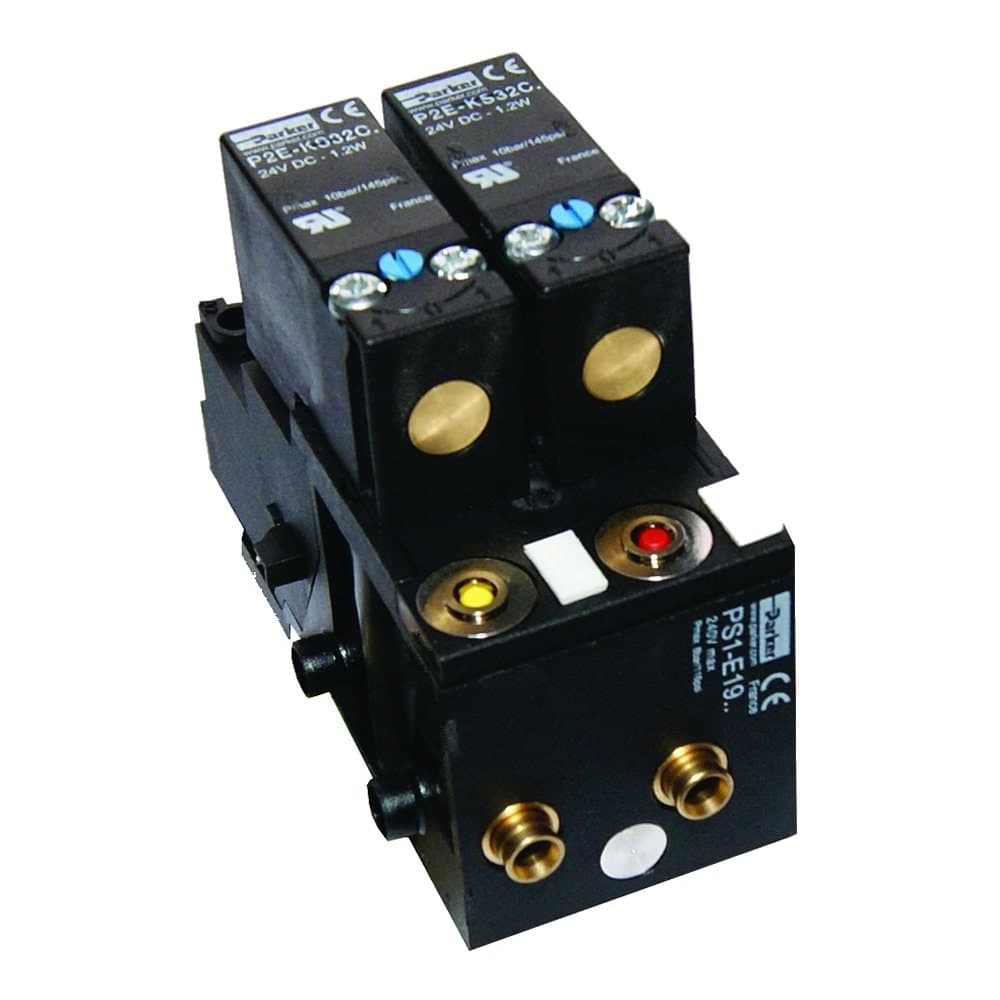

Pneumatic Solenoid Valve - PS1E Series
Product Details
- HTS Code 8481909040
- Body Material Glass Filled Polyamide
- Division Electric Motion and Pneumatic Division - Europe
- Number of Positions n/a
- Mounting Type Stacking
- Pressure Rating 3 to 8.2 bar
- Port Type Tube Push-In Connections
- Port Size 6mm
- Maximum Flow Rate n/a
- Lubricant Lubricated or Non-Lubricated air
- Actuation Type n/a
- Number of Ports n/a
- Electrical Connection terminal strip
- Media Air
- Seal Material Poppet: Polyurethane | Seals: Nitrile (Buna N)
- Fieldbus Protocol n/a
- Valve Type -
- Minimum Flow Rate 0.14 Cv
- Minimum Operating Pressure 40 psig
- Power Consumption 1.2W, 1.6VA
- Number of Manifold Outlets n/a
- Override Functionality Non-Locking and Locking Manual Overrides
- Nominal Flow Coefficient n/a
- Operating Temperature +5 to +140 °F
- Specifications Met IP20
- Input Voltage 12 to 48VDC, 120/240VAC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS1E101 on Applied Automation is $64.45. Order now.
About the product
The PS1E series valve is an internal air piloted stacking style with plug-in coils. Available valve functions are 3/2, and 5/2 single and double solenoid. Each valve is individually wired with a separate conductor. Surge suppressors with an indicating LED are available and are mounted between the coil and the valve body. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool. Markets Miscellaneous Processing Factory Automation Features/Benefits Various manual override Voltages ranges High flow Low power Mobile version Food version Applications Valve piloting Small actuator piloting Blowing
