P32DA14PPN Parker Hannifin Industrial Automation Components

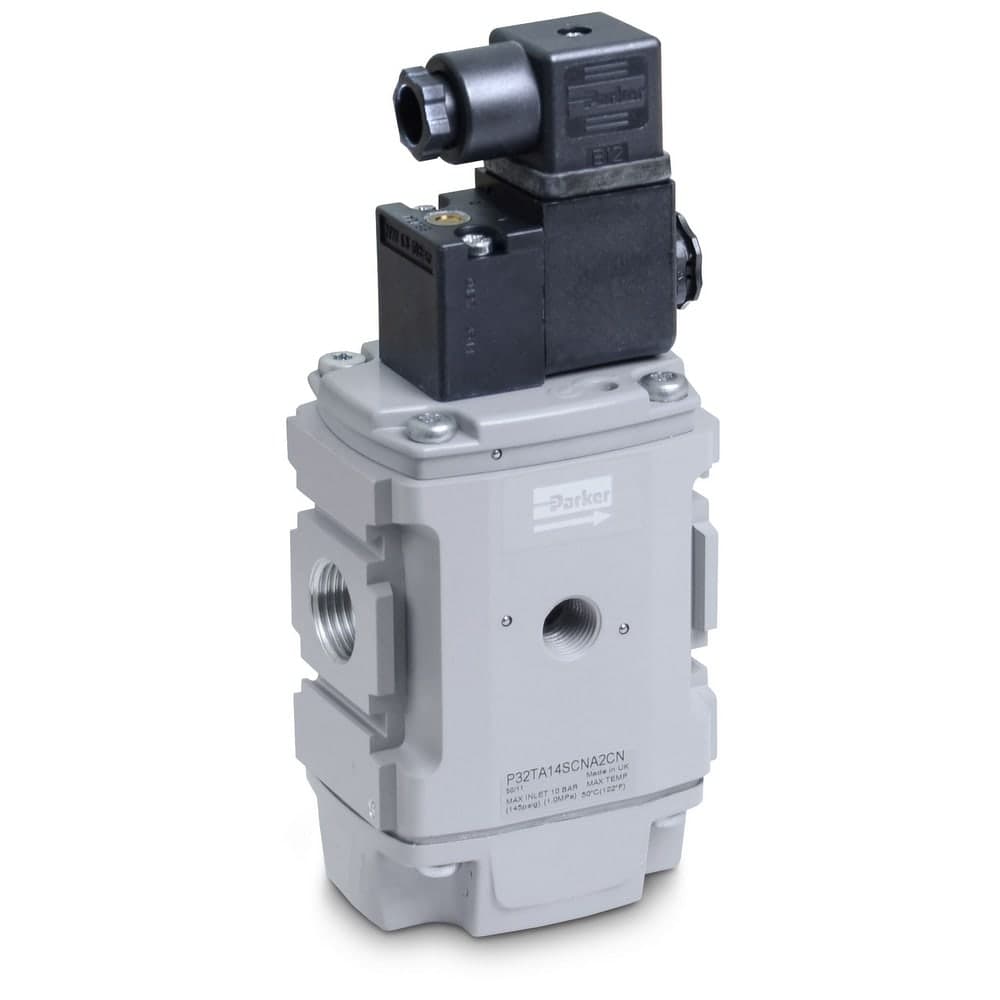

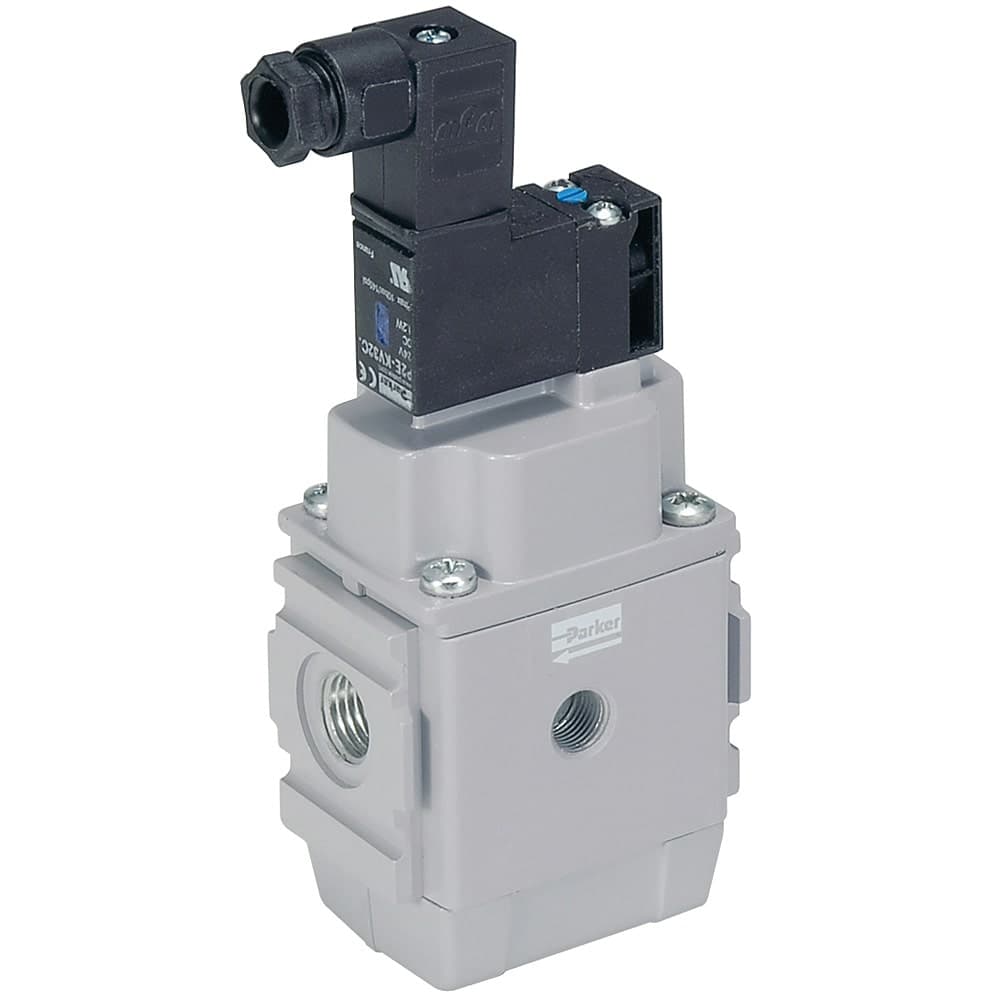

P32D modular global compact dump valve is a remotely operating dump valve that automatically shuts off upstream pressure and exhausts the downstream pressure when the pilot pressure is released. The valve will automatically dump when the holding signal is removed. The quick dump valves are high flow, normally closed, 3-port, 2-position directional control valves. Upon energising the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve, providing full air flow to the downstream. When the solenoid is de-energised, the main valve closes, allowing downstream air to exhaust rapidly through the bottom plug.  The bottom plug is tapped so exhaust may be piped away or fitted with a muffler/silencer. The P32D dump valve can be mounted using a modular connector to other P32 global air preparation products.  Markets Machine Tools Misc. Industrial Misc. Manufacturing Air and Gas Appliances Factory Automation Entertainment Automation Molding Packaging Machinery Printing and Marking Equipment Vehicle Assembly Facilities Wearing Apparel Food and Beverage Misc. Processing Features/Benefits Modular design with 1/2" integral ports (NPT, BSPP & BSPT) The 3-way, 2-position function automatically dumps downstream pressure on the loss of pilot signal Solenoid or air pilot options High flow & exhaust capability Silencer included Applications To be used in combination with valves and cylinders main function to protect and as safety device in: Positioning Cutting Machining Pick and place and packaging and wrapping systems Safety factor to prevent damages to tools reduces the chance of injuries in the work place when pressure is needed to be depressurised
