134-02AP Parker Hannifin Industrial Automation Components
Part#:134-02AP
Manufacturer:Parker Hannifin
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
Relief Valves - 134 Series
Product Details
- HTS Code 8481400000
- Adjustment Mechanism Polypropylene Push-Pull Locking Knob
- Body Material Brass
- Maximum Inlet Pressure Rating 300 psig
- Division Pneumatic Division
- Port Type 3 Female Inlet Ports, and 1 outlet port
NPT │ BSPP - Operating Temperature +40° to +120° °F
- Adjustment Screw Material Zinc Plated Steel Adjusting Screw and Spring
- Port Size Inlet Port 1/8" and 1/4", Outlet Port 1/4"
- Pressure Relief Setting 0 to 100 psig
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 134-02AP on Applied Automation is $55.86. Order now.
About the product

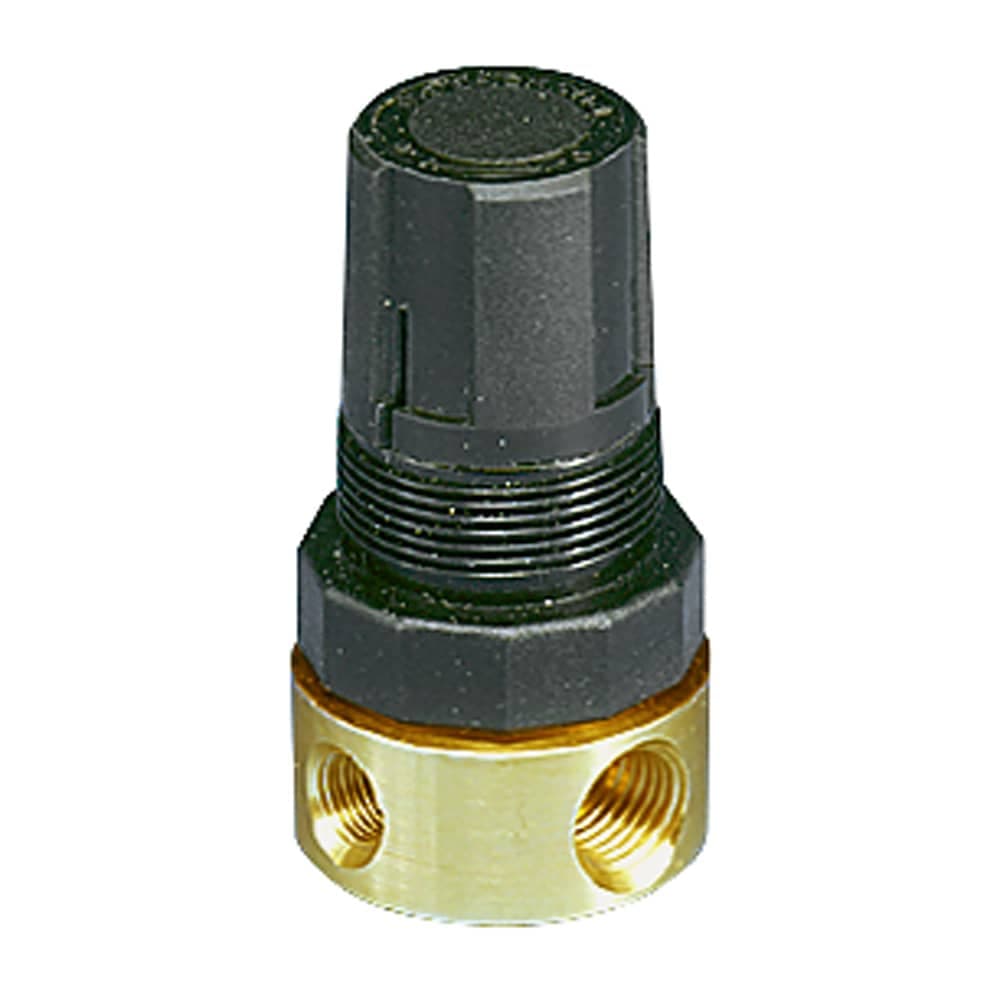

The 134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available. The 134 has a brass body with captured exhaust and is an inline type unit with 3 inlet ports and 1 outlet port. Markets: Factory Automation Heavy Industries Features/Benefits: Compact design saves space Top adjustment knob Durable brass body Protects pneumatic circuit or system Applications: Industrial environment General pneumatic assembly
