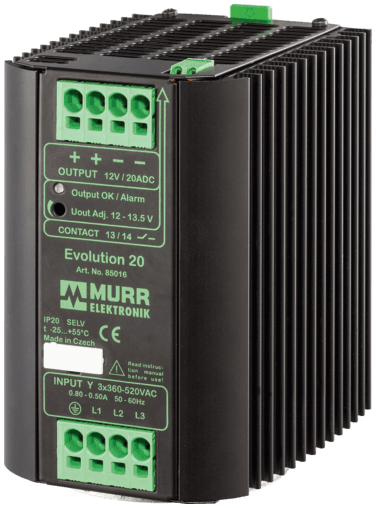

85016 Murr Elektronik AC/DC Power Supplies

Product Details

• Weight
  1500 g
• Series
  Transformators/Power Supplies
• Power Boost
  Iout N × 150% (min. 4 s)
• Input current
  3× 0.8 A
• Standards
  IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
• Product article number of manufacturer
  85016
• Relative humidity
  5...95%, no condensation
• Spikes
  max. 100 mV ss/pp
• Connection
  Spring clamp terminals
• Mains failure bridging time
  min. 19 ms (400 V AC)
• Temperature range
  -25...+70 °C (storage temperature -40...+85 °C)
• Alarm output
  electronic relay max. 30 V DC/0.1 A, group alarm
• Inrush current after 1 ms
  max. 15 A
• Mounting method
  DIN-rail mountable TH35 (EN 60715)
• Output current
  20 A (+55 °C); 15.8 A (+70 °C)
• Output voltage
  12 V DC (SELV), ±1%; 12...13.5 V adjustable
• Ripple
  max. 50 mV eff/rms
• Primary fusing external
  3× 10 A (T)
• Efficiency
  89% (3× 400 V AC); 88% (3× 520 V AC)
• Parallel usage/serial usage
  max. 5 units/max. 4 units
Frequency
50...60 Hz
Dimensions H×W×D
132×93×114 mm
LED display
LED (green): OK; LED (red): overload
Input voltage
3× 324...572 V AC/480...745 V DC
Protection
IP20
Unit protection
short-circuit and overload protected
