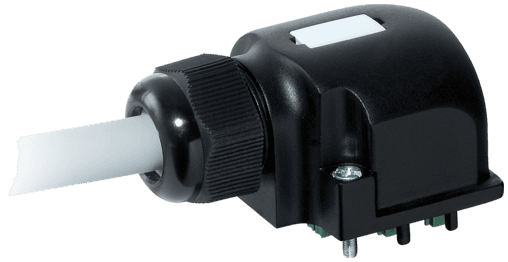

8000-88459-3623000 Murr Elektronik I/O Distributors

Product Details

• Weight
  2700 g
• Series
  Distribution Systems
• Temperature range
  -20...+80 °C, depending on cable quality
• Resistor (core)
  max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
• Color/numbering of wires
  wh, vi, gn, ye, gr, pk, rd, bk+br, bl, gnye longitudinally striped
• Current load capacity
  to DIN VDE 0298-4
• Product article number of manufacturer
  8000-88459-3623000
• No./diameter of wires
  8× 0.34 + 3× 0.75 mm²
• Single wire Ø (core)
  0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
• Material (jacket)
  PUR/PVC
• Nominal voltage
  U0/U 300/300 V AC
• Form
  88459
• Construction (core)
  19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
• Outer-Ø (jacket)
  8.1 mm ±5%
• Bend radius (moving)
  10× outer Ø
• Housing
  Plastic, flame retardant
• Shore hardness (wire isolation)
  43 ±5 D
• Jacket Color
  gray
• Cable identification
  362
• AWG
  similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Test voltage
2000 V AC
Outer Ø
8.1 mm ±5%
Material (wire)
Cu wire, bare
Material (wire isolation)
PVC
Temperature range (mobile)
-5...+70 °C
Acceleration (C-track)
max. 10 m/s²
Total current
max. 8 A
Cable weight [g/m]
115,5 g
Shield
no
Temperature range (fixed)
-30...+80 °C
C-track properties
2 Mio.
Cable Type
2 (PUR/PVC)
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Travel speed (C-track)
max. 2 m/s
Approval (cable)
UL (AWM-Style 20549/1731), CE conform
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Bend radius (fixed)
5× outer Ø
Wire isolation
PVC
Diameter (core)
8× 0.34 + 3× 0.75 mm²
Color (jacket)
gray
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
