8000-88010-3571500 Murr Elektronik I/O Distributors

Name: 8000-88010-3571500
Brand: Murr Elektronik
Price: 224.1 USD
Availability: BackOrder

8000-88010-3571500 on Applied Automation

Part#:8000-88010-3571500

Category:I/O Distributors

Product Lifecycle:Active

Product description

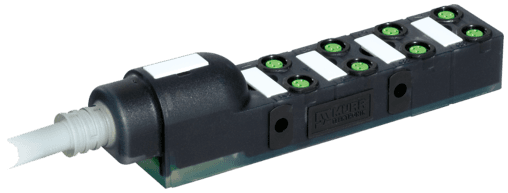

8000-88010-3571500 Murrelektronik - EXACT8, 8XM8, 3 POLE PRE-WIRED CABLE, 15.0m PUR/PVC 8*0,34+2*0,75

Product Details

Weight
1679 g
Series
Distribution Systems
No./diameter of wires
8× 0.34 + 2× 0.75 mm²
Form
88010
Bend radius (fixed)
5× outer Ø
Product article number of manufacturer
8000-88010-3571500
Locking of ports
Screw thread (M8×1 mm)
Wire isolation
PVC (vi, bk, rd, pk, gr, ye, gn, wh+br, bl)
C-track properties
2 Mio.
Color (jacket)
gray
Temperature range (mobile)
-5...+60 °C
Material (jacket)
PUR/PVC
Outer Ø
8.6 mm ±5%
PIN 4
(NO)/(S1)
Operating current per contact
max. 2 A
Temperature range
-20...+80 °C, depending on cable quality
Cable number
357
PIN 3
(-)
PIN 1
(+)
Protection
IP65/IP67

Temperature range (fixed)

-30...+80 °C

Bend radius (moving)

10× outer Ø

Housing

Plastic, flame retardant

Jacket Color

gray

Operating voltage

24 V DC

Signal per port

1 - (31-32)

Total current

max. 8 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8000-88010-3571500 on Applied Automation is $224.10. Order now.
