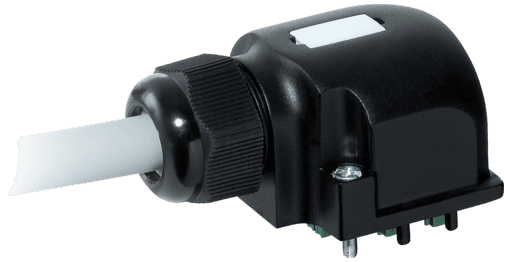

8000-84559-3631000 Murr Elektronik I/O Distributors

Product Details

• Weight
  1256 g
• Series
  Distribution Systems
• Wire isolation
  PVC
• Cable number
  363
• Material (jacket)
  PUR/PVC
• Temperature range (fixed)
  -30...+80 °C
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Total current
  max. 8 A
• Approval (cable)
  UL (AWM-Style 21441/10955), CE conform
• Diameter (core)
  8× 0.34 + 3× 0.75 mm²
• Test voltage
  2000 V AC
• Bend radius (moving)
  10× outer Ø
• Cable Type
  2 (PUR/PVC)
• Material (wire isolation)
  PVC
• Current load capacity
  to DIN VDE 0298-4
• Acceleration (C-track)
  max. 10 m/s²
• Temperature range
  -20...+80 °C, depending on cable quality
• Single wire Ø (core)
  0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
• Shore hardness (jacket)
  87 ±5 A
• Form
  84559
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Jacket Color
gray
Bend radius (fixed)
5× outer Ø
Housing
Plastic, flame retardant
Cable weight [g/m]
115,5 g
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Travel speed (C-track)
max. 2 m/s
No./diameter of wires
8× 0.34 + 3× 0.75 mm²
Material (wire)
Cu wire, bare
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
8.1 mm ±5%
C-track properties
2 Mio.
Color/numbering of wires
wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped
Nominal voltage
U0/U 300/300 V AC
Cable identification
363
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Shore hardness (wire isolation)
43 ±5 D
Temperature range (mobile)
-5...+70 °C
Outer Ø
8.1 mm ±5%
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Color (jacket)
gray
Product article number of manufacturer
8000-84559-3631000
