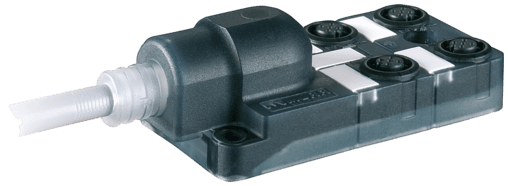

8000-84511-3630500 Murr Elektronik I/O Distributors

Product Details

• Weight
  790 g
• Series
  Distribution Systems
• PIN 4
  (NO)/(S1)
• PIN 5
  (Earth)
• Product article number of manufacturer
  8000-84511-3630500
• PIN 3
  (-)
• PIN 1
  (+)
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Acceleration (C-track)
  max. 10 m/s²
• Travel speed (C-track)
  max. 2 m/s
• PIN 2
  (NC)/(S2)
• Temperature range (mobile)
  -5...+70 °C
• Temperature range (fixed)
  -30...+80 °C
• Bend radius (moving)
  10× outer Ø
• Bend radius (fixed)
  5× outer Ø
• Current load capacity
  to DIN VDE 0298-4
• Test voltage
  2000 V AC
• Jacket Color
  gray
• Color (jacket)
  gray
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
Outer-Ø (jacket)
8.1 mm ±5%
C-track properties
2 Mio.
Nominal voltage
U0/U 300/300 V AC
Shore hardness (jacket)
87 ±5 A
Material (jacket)
PUR/PVC
Shield
no
Color/numbering of wires
wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped
Shore hardness (wire isolation)
43 ±5 D
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Material (wire isolation)
PVC
Wire isolation
PVC
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
No./diameter of wires
8× 0.34 + 3× 0.75 mm²
Diameter (core)
8× 0.34 + 3× 0.75 mm²
Single wire Ø (core)
0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
Protection
IP65/IP67
Locking of ports
Screw thread (M12×1 mm)
Housing
Plastic, flame retardant
Temperature range
-20...+70 °C, depending on cable quality
Operating current per contact
max. 4 A
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Cable weight [g/m]
115,5 g
Material (wire)
Cu wire, bare
Operating voltage
24 V DC
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Cable number
363
Cable identification
363
Cable Type
2 (PUR/PVC)
Outer Ø
8.1 mm ±5%
