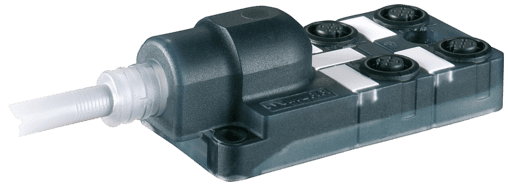

8000-84410-3332500 Murr Elektronik I/O Distributors

Product Details

• Weight
  2720 g
• Series
  Distribution Systems
• Wire isolation
  PVC
• Material (wire)
  Cu wire, bare
• Color/numbering of wires
  wh, gn, ye, gr+br, bl, gnye longitudinally striped
• Current load capacity
  to DIN VDE 0298-4
• PIN 1
  (+)
• Outer Ø
  7.4 mm ±5%
• Resistor (core)
  max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
• Shore hardness (jacket)
  87 ±5 A
• PIN 3
  (-)
• Operating voltage
  24 V DC
• Cable Type
  2 (PUR/PVC)
• Single wire Ø (core)
  0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²)
• Outer-Ø (jacket)
  7.4 mm ±5%
• Acceleration (C-track)
  max. 10 m/s²
• PIN 4
  (NO)/(S1)
• C-track properties
  2 Mio.
• Diameter (core)
  4× 0.34 + 3× 0.75 mm²
• Shore hardness (wire isolation)
  43 ±5 D
Test voltage
2000 V AC
Product article number of manufacturer
8000-84410-3332500
Protection
IP65/IP67
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Material (wire isolation)
PVC
Nominal voltage
U0/U 300/300 V AC
Travel speed (C-track)
max. 2 m/s
Temperature range
-20...+70 °C, depending on cable quality
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Bend radius (moving)
12× outer Ø
Operating current per contact
max. 4 A
Cable weight [g/m]
91,3 g
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)
Color (jacket)
gray
Bend radius (fixed)
5× outer Ø
Housing
Plastic, flame retardant
Cable identification
333
Construction (core)
19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5)
Jacket Color
gray
Temperature range (mobile)
-5...+70 °C
No./diameter of wires
4× 0.34 + 3× 0.75 mm²
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Shield
no
Temperature range (fixed)
-30...+80 °C
PIN 5
(Earth)
Locking of ports
Screw thread (M12×1 mm)
Cable number
333
Material (jacket)
PUR/PVC
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
