8000-80040-3841000 Murr Elektronik I/O Distributors
Part#:8000-80040-3841000
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Product description

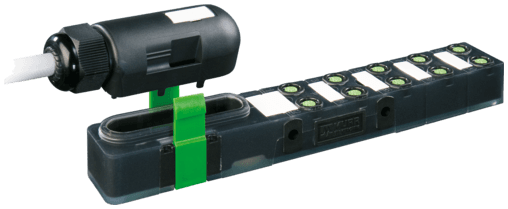

8000-80040-3841000 Murrelektronik - EXACT8, 10XM8, 3 POLE PLUG. CAP, SPRING-TERM., 10.0m PUR 10*0,34+2*0,75 exit norm.
Product Details
- Weight 1336 g
- Series Distribution Systems
- No./diameter of wires 10× 0.34 + 2× 0.75 mm²
- Outer Ø 9.3 mm ±5%
- Locking of ports Screw thread (M8×1 mm)
- Temperature range (mobile) -5...+60 °C
- Operating voltage 24 V DC
- Cable number 384
- Material (jacket) PUR (UL/CSA)
- Form 80040
- Temperature range -20...+80 °C, depending on cable quality
- Bend radius (moving) 10× outer Ø
- Housing Plastic, flame retardant
- PIN 1 (+)
- Total current max. 8 A
- Jacket Color gray
- PIN 4 (NO)/(S1)
- Operating current per contact max. 2 A
- Color (jacket) gray
- PIN 3 (-)
- Protection IP67 inserted and tightened (EN 60529)
- Temperature range (fixed) -40...+80 °C
- Product article number of manufacturer 8000-80040-3841000
- Signal per port 1 - (31-32)
- C-track properties 5 Mio.
- Bend radius (fixed) 5× outer Ø
- Connection Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16)
- Approval (cable) UL (AWM-Style 20233/10042), CSA; CE conform
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
