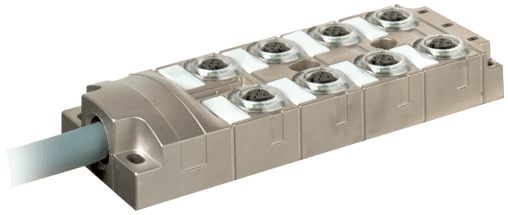

8000-58512-4521000 Murr Elektronik I/O Distributors

Product Details

• Weight
  2500 g
• Series
  Distribution Systems
• Operating voltage
  max. 125 V AC/DC
• Material (wire isolation)
  TPE-E
• Test voltage
  2000 V AC
• PIN 4
  (NO)/(S1)
• Protection
  IP65, IP67, IP68
• Material (jacket)
  PUR
• Shore hardness (jacket)
  94 ±5 A
• Traversing distance (C-track)
  max. 5 m (horizontal)
• Temperature range
  -20...+90 °C, depending on cable quality
• Approval (cable)
  cRUus (AWM style 20549/10042); CE compliant
• Outer-Ø (jacket)
  11.5 mm ±5%
• Travel speed (C-track)
  max. 2 m/s
• Housing
  Zinc die casting, matte nickel plated
• Single wire Ø (core)
  0.1 mm
• Nominal voltage
  300/300 V AC
• PIN 1
  (+)
• Cable identification
  452
• Diameter (core)
  16× 0.5 + 3× 1.0 mm²
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
No. of bending cycles (C-track)
max. 5 Mio.
Product article number of manufacturer
8000-58512-4521000
Cable weight [g/m]
231 g
AWG
similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²)
Color (jacket)
gray
PIN 3
(-)
Locking of ports
Screw thread (M12×1 mm)
Wire-Ø incl. isolation
1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²)
Current load capacity
to DIN VDE 0298-4
Acceleration (C-track)
max. 5 m/s²
Operating current per contact
max. 4 A
Construction (core)
64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
PIN 2
(NC)/(S2)
Resistor (core)
max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C)
chemical resistance
good resistance to oil, gasoline and chemicals
Bend radius (moving)
10× outer Ø
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
55 ±3 D
Temperature range (mobile)
-20...+90 °C
PIN 5
(Earth)
