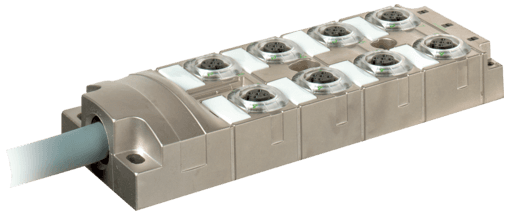

8000-58512-4520500 Murr Elektronik I/O Distributors

Product Details

• Weight
  1500 g
• Series
  Distribution Systems
• Locking of ports
  Screw thread (M12×1 mm)
• Diameter (core)
  16× 0.5 + 3× 1.0 mm²
• Test voltage
  2000 V AC
• No. of bending cycles (C-track)
  max. 5 Mio.
• Temperature range
  -20...+90 °C, depending on cable quality
• Outer-Ø (jacket)
  11.5 mm ±5%
• Bend radius (moving)
  10× outer Ø
• Traversing distance (C-track)
  max. 5 m (horizontal)
• Operating current per contact
  max. 4 A
• Shore hardness (wire isolation)
  55 ±3 D
• Material (jacket)
  PUR
• PIN 3
  (-)
• Cable weight [g/m]
  231 g
• Construction (core)
  64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6)
• chemical resistance
  good resistance to oil, gasoline and chemicals
• PIN 2
  (NC)/(S2)
• Approval (cable)
  cRUus (AWM style 20549/10042); CE compliant
• Wire-Ø incl. isolation
  1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²)
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
PIN 4
(NO)/(S1)
Housing
Zinc die casting, matte nickel plated
Material (wire isolation)
TPE-E
Nominal voltage
300/300 V AC
PIN 1
(+)
Protection
IP65, IP67, IP68
AWG
similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²)
Current load capacity
to DIN VDE 0298-4
PIN 5
(Earth)
Resistor (core)
max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C)
Shore hardness (jacket)
94 ±5 A
Temperature range (mobile)
-20...+90 °C
Acceleration (C-track)
max. 5 m/s²
Operating voltage
max. 125 V AC/DC
Material (wire)
Cu wire, bare
Color (jacket)
gray
Product article number of manufacturer
8000-58512-4520500
Cable identification
452
Single wire Ø (core)
0.1 mm
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Travel speed (C-track)
max. 2 m/s
