8000-54513-3730300 Murr Elektronik I/O Distributors
Part#:8000-54513-3730300
Manufacturer:Murr Elektronik
Category:I/O Distributors
Product Lifecycle:Active
Product description

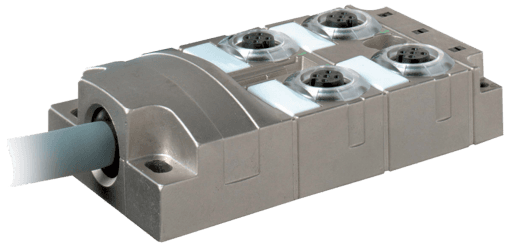

8000-54513-3730300 Murrelektronik - MVP-METALL, 4XM12, 5POLE, PRE-WIRED CABLE, 3.0m PUR 8x0,34+3X0.75, UL/CSA, replacement for 27481
Product Details
- Weight 700 g
- Series Distribution Systems
- C-track properties 5 Mio.
- Outer Ø 9.3 mm ±5%
- PIN 1 (+)
- No./diameter of wires 8× 0.34 + 3× 0.75 mm²
- Temperature range (fixed) -40...+90 °C
- Operating voltage 24 V DC
- Material (jacket) PUR (UL/CSA)
- Operating current per contact max. 4 A
- Bend radius (fixed) 10× outer Ø
- PIN 2 (NC)/(S2)
- Locking of ports Screw thread (M12×1 mm)
- Jacket Color gray
- Product article number of manufacturer 8000-54513-3730300
- Wire isolation TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye)
- Bend radius (moving) 12× outer Ø
- Protection IP65, IP67, IP68
- Temperature range (mobile) -40...+90 °C
- PIN 4 (NO)/(S1)
- Temperature range -20...+90 °C, depending on cable quality
- Color (jacket) gray
- PIN 3 (-)
- Cable number 373
- PIN 5 (Earth)
- Housing Zinc die casting, matte nickel plated
- Shield yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8000-54513-3730300 on Applied Automation is $215.10. Order now.
