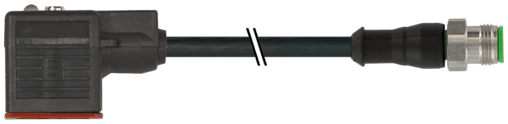

7072-40871-7540060 Murr Elektronik Cable Assemblies

Product Details

• Weight
  68 g
• Series
  Connector Systems
• Current consumption
  7 mA
• Locking material
  Stainless steel 1.4305 (V2A)
• Material
  MSUD (PBT); M12 (PUR)
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Shore hardness (wire isolation)
  70 ±5 D
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Travel speed (C-track)
  max. 3 m/s
• Form
  40871
• Compression gland
  M12 (SW14)
• Cable weight [g/m]
  40,7 g
• Wire-Ø incl. isolation
  1.7 mm ±5%
• Shore hardness (jacket)
  90 ±5 A
• Rated surge voltage
  0.8 kV
• Mounting method
  inserted, tightened
• Material (contact)
  Copper alloy
• Color/numbering of wires
  br, bl
• Bend radius (fixed)
  5× outer Ø
• Torsion speed
  35 cycles/min
Operating voltage
12...24 V DC
LED display
yellow
Material (contact surface)
MSUD (Ag); M12(Au)
Single wire Ø (core)
0.15 mm
Shield
no
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Cable length
0,6 m
Cable identification
754
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
AWG
similar to AWG 18
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Material group
IEC 60664-1, category I
Protection
IP65, IP66K, IP67, IP68 inserted and tightened (EN 60529)
Cable Type
3 (PUR)
Temperature range
-25...+85 °C, depending on cable quality
Material (wire isolation)
PP
Outer-Ø (jacket)
5.0 mm ±5%
Bend radius (moving)
10× outer Ø
No. of poles
MSUD (4); M12 (2)
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Pollution Degree
3
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Color (jacket)
black
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Torsion stress
±180°/m
Switch off peak
max. 1.3 V
Housing
Black plastic (gray on request)
Material (gasket)
Silicon
Material (jacket)
PUR
Test voltage
2500 V AC
No. of torsion cycles
max. 2 Mio. (25 °C)
suitable for corrugated tube (internal Ø)
10 mm
Standards
DIN EN 61076-2-101 (M12)
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Stranding combination
2 wires twisted
Nominal voltage
300 V AC
Acceleration (C-track)
max. 10 m/s²
Operating current per contact
max. 4 A
Additional suppressor
Diode/flyback diode
Material (wire)
Cu wire, bare
Diameter (core)
2× 0.75 mm²
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Current load capacity
to DIN VDE 0298-4
Product article number of manufacturer
7072-40871-7540060
