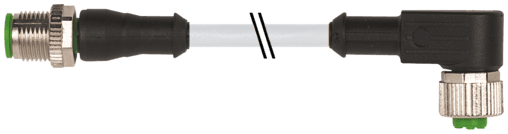

7060-40261-8620200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  144 g
• Series
  Connector Systems
• Diameter (core)
  4× 0.75 mm²
• Outer-Ø (jacket)
  6.5 mm ±5%
• Travel speed (C-track)
  max. 3 m/s
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• AWG
  similar to AWG 18
• Shore hardness (jacket)
  90 ±5 A
• Current load capacity
  to DIN VDE 0298-4
• Cable length
  2 m
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Torsion speed
  35 cycles/min
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Test voltage
  2500 V AC
• Form
  40261
• Material (jacket)
  PUR
• Color/numbering of wires
  br, bk, bl, wh
• Bend radius (fixed)
  5× outer Ø
• Material (wire)
  Cu wire, bare
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Operating voltage
max. 250 V AC/DC
Resistor (core)
max. 26 Ω/km (20 °C)
Shore hardness (wire isolation)
70 ±5 D
Temperature range
-25...+85 °C, depending on cable quality
Cable Type
3 (PUR)
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 10 m/s²
Cable identification
862
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Material (wire isolation)
PP
Stranding combination
4 wires twisted
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Operating current per contact
max. 4 A
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Color (jacket)
gray
Bend radius (moving)
10× outer Ø
Locking material
Zinc die casting, matte nickel plated
Single wire Ø (core)
0.15 mm
Wire-Ø incl. isolation
1.85 mm ±5%
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Product article number of manufacturer
7060-40261-8620200
Cable weight [g/m]
67,1 g
Nominal voltage
300 V AC
Torsion stress
±180°/m
