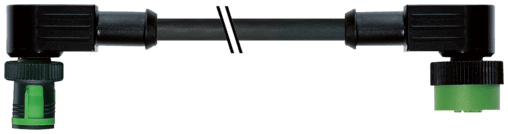

7050-40261-6341500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  608 g
• Series
  Connector Systems
• Operating voltage
  max. 250 V AC/DC
• Cable identification
  634
• Construction (core)
  42× 0.1 mm (multi-strand wire class 6)
• Outer-Ø (jacket)
  4.5 mm ±5%
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Product article number of manufacturer
  7050-40261-6341500
• Protection
  IP65/IP67 inserted and tightened (EN 60529)
• Cable weight [g/m]
  36,3 g
• Shore hardness (wire isolation)
  70 ±5 D
• Color (jacket)
  black
• Bend radius (moving)
  10× outer Ø
• No. of poles
  4
• Diameter (core)
  4× 0.34 mm²
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Form
  40261
• Pollution Degree
  3
• AWG
  similar to AWG 22
Shield
no
Current load capacity
to DIN VDE 0298-4
Torsion speed
35 cycles/min
Cable length
15 m
Operating current per contact
max. 4 A
Cable Type
3 (PUR)
Single wire Ø (core)
0.1 mm
Material (jacket)
PUR
Acceleration (C-track)
max. 10 m/s²
Locking of ports
Quick connection, 1/4 turn
Temperature range
-25...+85 °C, depending on cable quality
Material (wire)
Cu wire, bare
Color/numbering of wires
br, bk, bl, wh
Test voltage
2500 V AC
Torsion stress
±180°/m
Material group
IEC 60664-1, category II
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Travel speed (C-track)
max. 3 m/s
Coding
A-coded
Compression gland
PA
Wire-Ø incl. isolation
1.25 mm ±5%
Nominal voltage
300 V AC
No. of torsion cycles
max. 2 Mio. (25 °C)
suitable for corrugated tube (internal Ø)
10 mm
Material (wire isolation)
PP
Shore hardness (jacket)
90 ±5 A
Bend radius (fixed)
5× outer Ø
Rated surge voltage
2.5 kV
Resistor (core)
max. 57 Ω/km (20 °C)
Stranding combination
4 wires twisted
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
