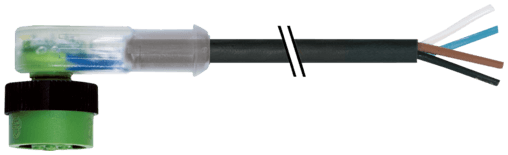

7050-40021-6341500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  607 g
• Series
  Connector Systems
• Temperature range
  -25...+85 °C, depending on cable quality
• Diameter (core)
  4× 0.34 mm²
• Shore hardness (jacket)
  90 ±5 A
• Current load capacity
  to DIN VDE 0298-4
• Torsion speed
  35 cycles/min
• Cable weight [g/m]
  36,3 g
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Acceleration (C-track)
  max. 10 m/s²
• Operating voltage
  max. 250 V AC/DC
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Cable identification
  634
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Material (jacket)
  PUR
• Bend radius (moving)
  10× outer Ø
• Product article number of manufacturer
  7050-40021-6341500
Cable Type
3 (PUR)
AWG
similar to AWG 22
Stranding combination
4 wires twisted
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Torsion stress
±180°/m
Form
40021
Resistor (core)
max. 57 Ω/km (20 °C)
Color/numbering of wires
br, bk, bl, wh
Test voltage
2500 V AC
No. of torsion cycles
max. 2 Mio. (25 °C)
Locking of ports
Quick connection, 1/4 turn
Material (wire isolation)
PP
Color (jacket)
black
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Operating current per contact
max. 4 A
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Outer-Ø (jacket)
4.5 mm ±5%
Travel speed (C-track)
max. 3 m/s
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Single wire Ø (core)
0.1 mm
Shore hardness (wire isolation)
70 ±5 D
Nominal voltage
300 V AC
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Rated surge voltage
2.5 kV
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Shield
no
Bend radius (fixed)
5× outer Ø
Cable length
15 m
