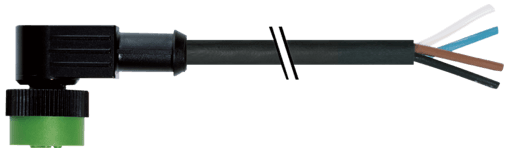

7050-12341-6140750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  325 g
• Series
  Connector Systems
• Operating voltage (only UL listed)
  30 V AC/DC
• Operating voltage
  max. 250 V AC/DC
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Shore hardness (jacket)
  85 ±5 A
• Temperature range (fixed)
  -30...+80 °C
• Locking of ports
  Quick connection, 1/4 turn
• Cable identification
  614
• Diameter (core)
  4× 0.34 mm²
• Jacket Color
  black
• No./diameter of wires
  4× 0.34 mm²
• Temperature range
  -25...+85 °C, depending on cable quality
• Stranding combination
  4 wires twisted
• Cable Type
  1 (PVC)
• Resistor (core)
  max. 60 Ω/km (20 °C)
• Current load capacity
  to DIN VDE 0298-4
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• Material (wire)
  Cu wire, bare
• Shield
  no
Outer Ø
5.0 mm ±5%
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Temperature range (mobile)
-5...+80 °C
Wire isolation
PVC (br, wh, bl, bk)
Cable weight [g/m]
40,7 g
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals
Product article number of manufacturer
7050-12341-6140750
Form
12341
Material (wire isolation)
PVC
Shore hardness (wire isolation)
45 ±5 D
Nominal voltage
UL 300 V AC
Cable length
7,5 m
Operating current per contact
max. 4 A
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Color/numbering of wires
br, bk, bl, wh
Test voltage
2000 V AC
Single wire Ø (core)
0.15 mm
AWG
similar to AWG 22
Material (jacket)
PVC
Color (jacket)
black
Outer-Ø (jacket)
5.0 mm ±5%
Bend radius (fixed)
5× outer Ø
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Bend radius (moving)
10× outer Ø
