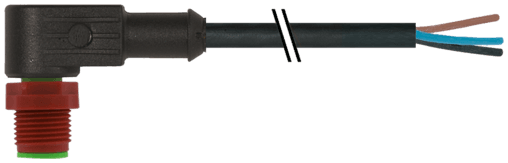

7023-20101-6260150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  89 g
• Series
  Connector Systems
• Rated surge voltage
  2.5 kV
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Stranding combination
  3 wires twisted
• Current load capacity
  to DIN VDE 0298-4
• Operating current per contact
  max. 4 A
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Material (jacket)
  PUR/PVC
• Temperature range (mobile)
  -5...+80 °C
• Product article number of manufacturer
  7023-20101-6260150
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• AWG
  similar to AWG 18
• Shore hardness (jacket)
  80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
• Travel speed (C-track)
  max. 3.3 m/s
• Locking material
  PA
• Single wire Ø (core)
  0.15 mm
• Diameter (core)
  3× 0.75 mm²
• chemical resistance
  good resistance to oil, gasoline and chemicals
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
Cable identification
626
Material (wire isolation)
PVC
Color/numbering of wires
bk numbered, gnye longitudinally striped
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (moving)
15× outer Ø
Cable weight [g/m]
55,33 g
Form
20101
Approval (cable)
UL (AWM-Style 20549/1731), CSA; CE conform
Shore hardness (wire isolation)
43 ±5 D
Nominal voltage
UL 300 V AC
Cable length
1,5 m
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Wire-Ø incl. isolation
1.8 mm ±5%
Color (jacket)
black
Test voltage
2000 V AC
Acceleration (C-track)
max. 5 m/s²
Temperature range
-25...+85 °C, depending on cable quality
Cable Type
2 (PUR/PVC)
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Bend radius (fixed)
10× outer Ø
Operating voltage
max. 250 V AC/DC
Material (wire)
Cu wire, bare
Shield
no
Temperature range (fixed)
-30...+80 °C
